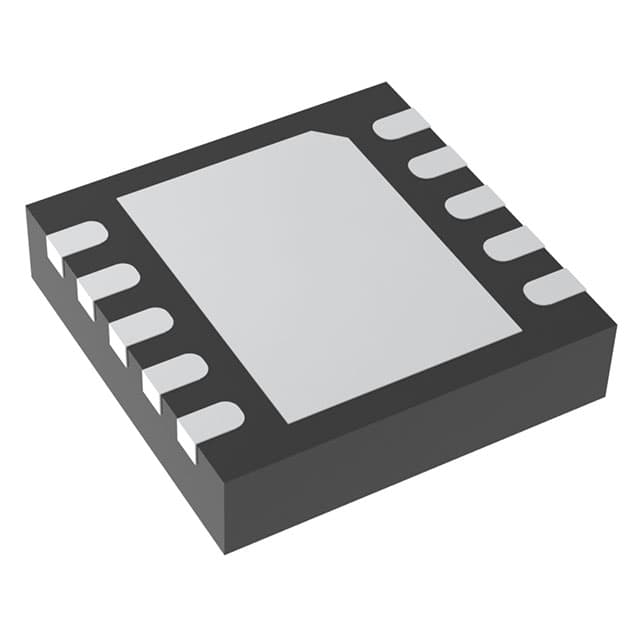

ONSEMI NCP1094MNRG

Manufacturer No:

NCP1094MNRG

Manufacturer:

ONSEMI

Package:

10-VFDFN Exposed Pad

Description:

Integrated PoE-PD Interface Controller with Vaux support, IEEE 802.3at, 30W

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1094MNRG information

ONSEMI NCP1094MNRG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1094MNRG.

Type
Parameter

Features
Adapter priority

MSL Type
3

MSL Temp (°C)
260

PoE Standard
802.3at

Input Power
25.5

PoE Class
4

Pass-FET RDS(on)
600

DC/DC Topology
-

Package Type
DFN-10

Case Outline
485C

Container Type
REEL

Container Qty.
3000

Rear Aux. Vcc
1

Download datasheets and manufacturer documentation for ONSEMI NCP1094MNRG.

Datasheet:

7acdd32f8786735322f9dbd3f6723a5b.pdf

Package Drawing:

442b0e4d8ab138c02a0ff02c2e3d88b9.pdf

The NCP1093 and NCP1094 are members of onsemi’s Power over Ethernet (PoE) Powered Device (PoE−PD) product family and integrate an IEEE802.3af certified interface controller. Both Variants incorporate the required functions such as detection, classification, under voltage lockout, inrush and operational current limit. A power good and NCLASS_AT signal have been added to guarantee proper control of the DC-DC converter for both type-I and type-II operation. In addition, the NCP1093 offers programmable under voltage lockout while the NCP1094 provides an auxiliary pin for applications supporting auxiliary supplies. The NCP1093 and NCP1094 are fabricated in a robust high voltage process and integrate a rugged vertical N-channel DMOS suitable for the most demanding environments and is capable of withstanding harsh environments such as hot swap and cable ESD events.

Application

Voice over IP
Wireless access points
IP camera

End Product

WiMax

Feature

Fully supports IEEE 802.3af/at specifications- Allows for up to 30W of power- Certified interoperability between PoE devices
Overtemperature protection
Industrial temperature range 40C to 85C with full operation up
to 125C junction temperature
