Microchip RE46C121E16F
Microchip RE46C121E16F

Microchip RE46C121E16F

Manufacturer No:

RE46C121E16F

Manufacturer:

Microchip

Package:

16-DIP (0.300, 7.62mm)

Description:

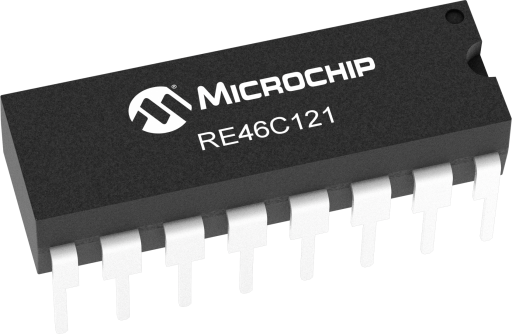

RE46C121 is an Ionization smoke detector IC w/temporal, interconnect

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RE46C121E16F information

Microchip RE46C121E16F technical specifications, attributes, parameters and parts with similar specifications to Microchip RE46C121E16F.

  • Type
  • Parameter
  • Alternate Diagnostics Mode
  • No
  • Operating Temp Max °C (degrees Celsius)
  • 60
  • Operating Temp Min °C (degrees Celsius)
  • -10
  • Operating Voltage Max V (volt)
  • 12
  • Operating Voltage Min V (volt)
  • 6
  • Reverse Battery Protection
  • Yes
  • Type
  • Ionization
  • Typical Iq µA (microampere)
  • 4.5

Download datasheets and manufacturer documentation for Microchip RE46C121E16F.

Data Sheets:

Application Notes:

Brochures:

The RE46C121 is low power CMOS ionization type smoke detector IC. With few external components this circuit will provide all the required features for an ionization type smoke detector. An internal oscillator strobes power to the smoke detection circuitry for 10.5mS every 1.66 seconds to keep standby current to a minimum. A check for a low battery condition is performed every 40 seconds when in standby. The temporal horn pattern supports the NFPA 72 emergency evacuation signal. An interconnect pin allows multiple detectors to be connected such that when one unit alarms all units will sound. Although this device was designed for smoke detection utilizing an ionization chamber it can be used in a variety of security applications.



  • Guard Outputs for Ion Detector Input
  • +/-0.75pA Detect Input Current
  • Internal Reverse Battery Protection
  • Internal Low Battery Detection
  • Low Quiescent Current Consumption (<6.5uA)
  • Available in 16L PDIP or 16L N SOIC
  • ESD Protection on all Pins
  • Interconnect up to 40 Detectors
  • Compatible with MC145018
  • Available in Standard Packaging or RoHS Complaint Pb Free Packaging

User Guide
