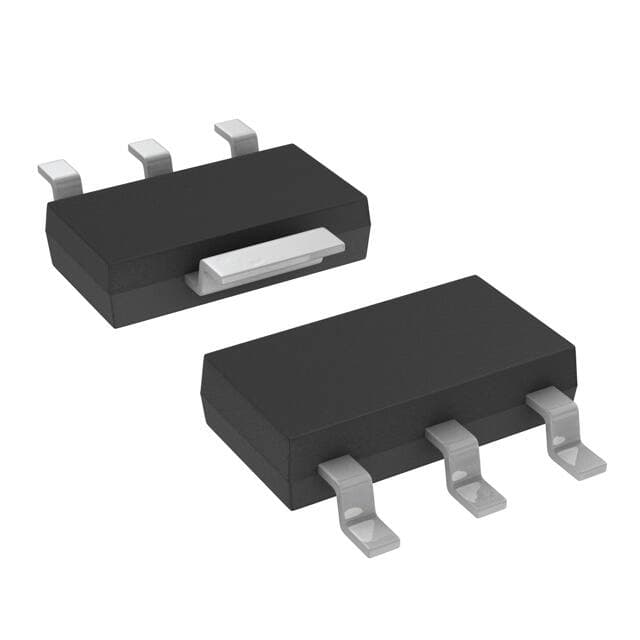

ONSEMI NCP1051ST100T3

Manufacturer No:

NCP1051ST100T3

Manufacturer:

ONSEMI

Package:

TO-261-4, TO-261AA

Description:

4 Terminations 7.5V~10V 4 Pin NCP1051 AC to DC power converter 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1051ST100T3 information

ONSEMI NCP1051ST100T3 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP1051ST100T3.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-261-4, TO-261AA

Surface Mount
YES

Number of Pins
4

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2006

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Power (Watts)
40W

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
40W

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
2.3mm

Reach Compliance Code
not_compliant

Frequency
100kHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
4

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
8V

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Supply (Vcc/Vdd)
7.5V~10V

Input Voltage (Min)
7.5V

Topology
Flyback

Control Mode
VOLTAGE-MODE

Output Current-Max
2A

Input Voltage (Max)
8.5V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Open Loop, Over Load, Over Temperature

Duty Cycle
77%

Output Isolation
Isolated

Voltage - Breakdown
700V

Voltage - Start Up
8.5V

Length
6.5mm

Width
3.5mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ONSEMI NCP1051ST100T3.

NCP1051ST100T3 Overview

This ac to dc converter is embedded in package TO-261-4, TO-261AA .The AC/DC power converter is available in Tape & Reel (TR) .There is a AC/DC converter mounted in the way of Surface Mount .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .As long as the supply voltage (Vcc/Vdd) is within the range of 7.5V~10V , the AC/DC converter may be used.In total, there are 4 terminations.The ac/dc converter has a total of 4 pins.There are 4 pins on the ac-dc converter.A similar acdc converter can be searched by using the NCP1051 family.A total of 1 outputs are to be processed.The ac to dc conversions are included in Switching Regulator or Controllers .A high efficiency is achieved when operating at a frequency of 100kHz .With the aid of a unique technique, it is possible to ensure that the input voltage will be at the maximum value of 8.5V .An amount of current of 2A is the maximum that can be supplied to the ac to dc inverter.

NCP1051ST100T3 Features

Packaged with TO-261-4, TO-261AA
With 4 pins

NCP1051ST100T3 Applications

There are a lot of ON Semiconductor
NCP1051ST100T3 AC DC Converters applications.

AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
