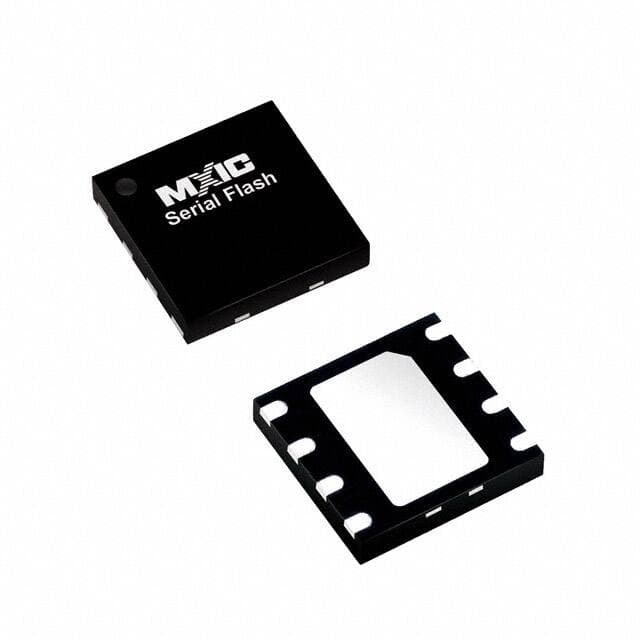

MACRONIX MX25U8033EZUI-12G

Manufacturer No:

MX25U8033EZUI-12G

Manufacturer:

MACRONIX

Package:

8-UDFN Exposed Pad

Description:

1.8V V MXSMIO? 8 Pin Memory IC MXSMIO? Series 4mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MX25U8033EZUI-12G information

MACRONIX MX25U8033EZUI-12G technical specifications, attributes, parameters and parts with similar specifications to MACRONIX MX25U8033EZUI-12G.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Surface Mount

Package / Case
8-UDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
MXSMIO?

JESD-609 Code
e3

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

Terminal Finish
Matte Tin (Sn)

Additional Feature
CAN BE ORGANISED AS 8 MBIT X 1

Technology
FLASH - NOR

Voltage - Supply
1.65V~2V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

JESD-30 Code
S-PDSO-N8

Qualification Status
Not Qualified

Power Supplies
1.8V

Supply Voltage-Min (Vsup)
1.65V

Interface
SPI, Serial

Memory Size
8Mb 1M x 8

Memory Type
Non-Volatile

Operating Mode
SYNCHRONOUS

Clock Frequency
80MHz

Supply Current-Max
0.025mA

Memory Format
FLASH

Memory Interface
SPI

Organization
2MX4

Memory Width
4

Write Cycle Time - Word, Page
30?s, 3ms

Standby Current-Max
0.000008A

Memory Density
8388608 bit

Programming Voltage
1.8V

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Alternate Memory Width
2

Length
4mm

Height Seated (Max)
0.6mm

Download datasheets and manufacturer documentation for MACRONIX MX25U8033EZUI-12G.

MX25U8033EZUI-12G Overview

Its memory type can be classified as Non-Volatile. It comes in a Tray. It is available in 8-UDFN Exposed Pad case. The memory size of the chip is 8Mb 1M x 8 Mb. This device utilizes a FLASH format memory which is of mainstream design. With an extended designed operating temperature of -40°C~85°C TA, this device is capable of lots of demanding applications. It is supplied votage within 1.65V~2V. Its recommended mounting type is Surface Mount. 8 terminations are planted on the chip. This part supports as many as 1 functions for the comprehensive working procedure. This ic memory chip is designed to be supplied with 1.8V. The memory has a clock frequency rotation within 80MHz. This memory device has 8 pins, indicating it has 8 memory locations. In spite of all the merits this chip has, it also features CAN BE ORGANISED AS 8 MBIT X 1 to level up system performance. Talking about power supplies, this memory chip requires merely 1.8V. As a member of the MXSMIO? series memory devices, this part plays an important role for its target applications. The SPI type serial bus this memory integrates with is helpful to carry and transfer data to the CPU. It is able to operate from a max supply current of 0.025mA. To alter the state of certain nonvolatile memory arrays, 1.8V programming voltage is required.

MX25U8033EZUI-12G Features

Package / Case: 8-UDFN Exposed Pad
Additional Feature:CAN BE ORGANISED AS 8 MBIT X 1

MX25U8033EZUI-12G Applications

There are a lot of Macronix
MX25U8033EZUI-12G Memory applications.

Cache memory
cell phones
eSRAM
mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
