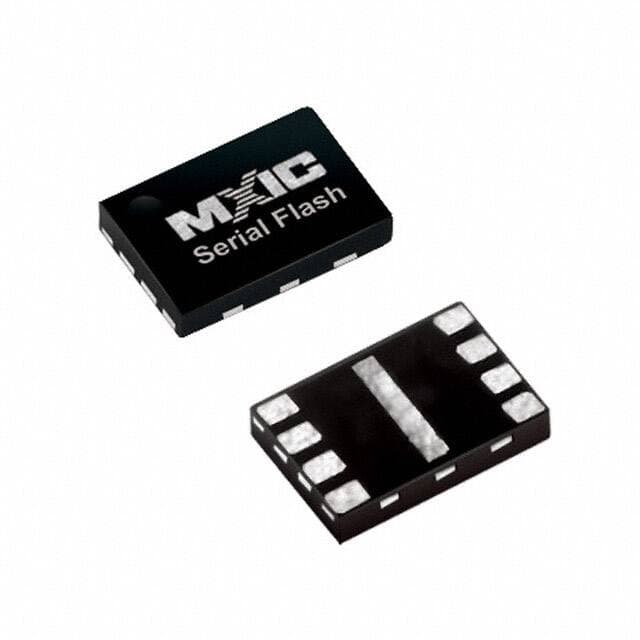

MACRONIX MX25L4006EZUI-12G

Manufacturer No:

MX25L4006EZUI-12G

Manufacturer:

MACRONIX

Package:

8-UFDFN Exposed Pad

Description:

3/3.3V V MX25xxx05/06 Memory IC MX25xxx05/06 Series 4 Mb kb 3mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MX25L4006EZUI-12G information

MACRONIX MX25L4006EZUI-12G technical specifications, attributes, parameters and parts with similar specifications to MACRONIX MX25L4006EZUI-12G.

Type
Parameter

Factory Lead Time
16 Weeks

Mounting Type
Surface Mount

Package / Case
8-UFDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
MX25xxx05/06

Published
2010

JESD-609 Code
e3

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

Terminal Finish
Matte Tin (Sn) - annealed

Technology
FLASH - NOR

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-N8

Qualification Status
Not Qualified

Operating Supply Voltage
3.6V

Supply Voltage-Min (Vsup)
2.7V

Interface
SPI, Serial

Memory Size
4Mb 512K x 8

Memory Type
Non-Volatile

Operating Mode
SYNCHRONOUS

Clock Frequency
86MHz

Supply Current-Max
0.02mA

Memory Format
FLASH

Memory Interface
SPI

Organization
2MX2

Memory Width
2

Write Cycle Time - Word, Page
50?s, 3ms

Density
4 Mb

Standby Current-Max
0.00001A

Programming Voltage
2.7V

Serial Bus Type
SPI

Endurance
100000 Write/Erase Cycles

Data Retention Time-Min
20

Write Protection
HARDWARE/SOFTWARE

Alternate Memory Width
1

Length
3mm

Height Seated (Max)
0.6mm

Width
2mm

Download datasheets and manufacturer documentation for MACRONIX MX25L4006EZUI-12G.

MX25L4006EZUI-12G Overview

There is a Non-Volatile memory type associated with this device. Tape & Reel (TR)-cases are available. There is a 8-UFDFN Exposed Pad case embedded in it. 4Mb 512K x 8 is the chip's memory size. FLASH-format memory is used in this device, which is a mainstream design. Due to its wide operating temperature range, this device can be used in a wide variety of demanding applications. The supply voltage can be up to 2.7V~3.6V. A Surface Mount mounting type is recommended for this product. The chip is terminated with 8 terminations. In total, this part supports 1 functions. Memory devices such as this one are designed to be powered by 3V and should be used as such. In this memory, the clock frequency rotation is within an 86MHz range. This memory's operating supply voltage is 3.6V. Power supplies for this memory chip are merely 3/3.3V . Its target applications rely heavily on the MX25xxx05/06 series memory devices. A SPI-type serial bus is used to carry and transfer data to the CPU through this memory. In order for it to operate properly, memory ics requires a maximum supply current of 0.02mA . It is necessary to apply 2.7V programming voltage to certain nonvolatile memory arrays in order to change their state.

MX25L4006EZUI-12G Features

Package / Case: 8-UFDFN Exposed Pad
Operating Supply Voltage:3.6V

MX25L4006EZUI-12G Applications

There are a lot of Macronix
MX25L4006EZUI-12G Memory applications.

mainframes
multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
