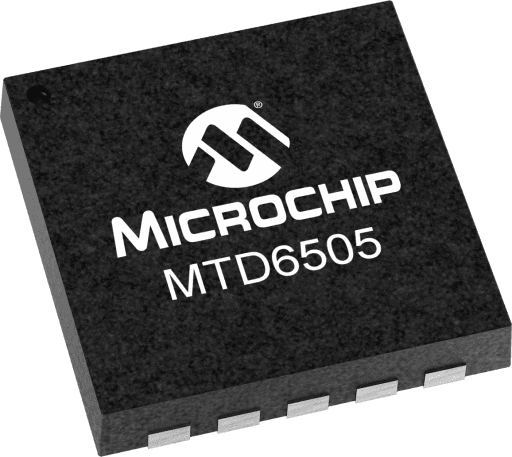

Microchip MTD6505T-E/NA
Manufacturer No:
MTD6505T-E/NA
Manufacturer:
Microchip
Package:
10-UFDFN Exposed Pad
Description:
5V BLDC Fan Driver
Quantity:
In Stock :4365
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Wed, Jul 1 - Thu, Jul 2, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MTD6505T-E/NA Information
Microchip MTD6505T-E/NA technical specifications, attributes, parameters and parts with similar specifications to Microchip MTD6505T-E/NA.
- Type
- Parameter
- Integrated LIN TR/RX
- No
- Integrated Op Amps
- 0
- Max. Ron per Output (Ω)
- 1.1
- Motor Control Methods
- PWM,PAM
- Motor Speed Output
- Frequency Generator
- Integrated Voltage Regs
- 0
- Supply Voltage Max (V)
- 5.5
- Supply Voltage Min (V)
- 2
- Output Type
- Integrated Driver
- TempRange Max
- +125
- Type
- Parameter
- TempRange Min
- -40
Download datasheets and manufacturer documentation for Microchip MTD6505T-E/NA.
Data Sheets:
User Guide:
The MTD6505 device is a 3-phase full-wave sensorless driver for brushless DC (BLDC) motors. It features 180° sinusoidal drive, high torque output and silent drive. With the adaptive features, parameters and wide range of power-supplies (2V to 5.5V), the MTD6505 is intended to cover a broad range of motor characteristics, while requiring minimum external components. Speed control can be achieved through either power supply modulation (PSM) or pulse-width
modulation (PWM).
The compact packaging and the minimal bill-of-material
make the MTD6505 device extremely cost efficient in fan applications. For example, the CPU cooling fans in notebook computers require designs that provide low acoustic noise, low mechanical vibration, and are highly efficient. The frequency generator (FG) output enables precision speed control in closed-loop applications.
The MTD6505 device includes Lockup Protection
mode to turn off the output current when the motor is in
a lock condition, with an automatic recovery feature to
restart the fan when the lock condition is removed.
Motor overcurrent limitation and thermal shutdown protection are included for safety enhanced operations.
- 180° Sinusoidal Drive, for high efficiency and low acoustic noise
- Position Sensorless BLDC Drivers (No Hall-effect sensor required)
- Integrated Power Transistors
- Supports 2V to 5.5V Power Supplies
- Programming Resistor (RPROG) setting to fit motor constant (Km) range from 3.25 mV/Hz to 52 mV/Hz
- Direction Control: - Forward direction: connect DIR pin to GND or leave floating - Reverse direction: connect DIR pin to VBIAS
- Speed Control through Power Supply Modulation (PSM) and/or Pulse-Width Modulation (PWM)
- Built-in Frequency Generator (FG Output Signal)
- Built-in Lockup Protection and Automatic Recovery Circuit
- Built-in Overcurrent Limitation
- Built-in Thermal Shutdown Protection
- No External Tuning Required playyoutube2("F0YWJ5NDo2c5vHWkRhiMxtkU1DFuopEm&videoPcode=w0ams6AIhH8YmJnkN-idxe3OQQvA")
MTD6505T-E/NA FAQ
Can I request a quote for MTD6505T-E/NA?
MTD6505T-E/NA from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for MTD6505T-E/NA?
The final price for MTD6505T-E/NA depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for MTD6505T-E/NA?
MTD6505T-E/NA is a Microchip Motor Drivers part. Key details include Max. Ron per Output (Ω): 1.1 and Integrated Voltage Regs: 0; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for MTD6505T-E/NA?
After you submit the RFQ for MTD6505T-E/NA, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for MTD6505T-E/NA?
Once stock for MTD6505T-E/NA is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to MTD6505T-E/NA?
Yes. If MTD6505T-E/NA is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip Motor Drivers parts and compatible replacement options.
