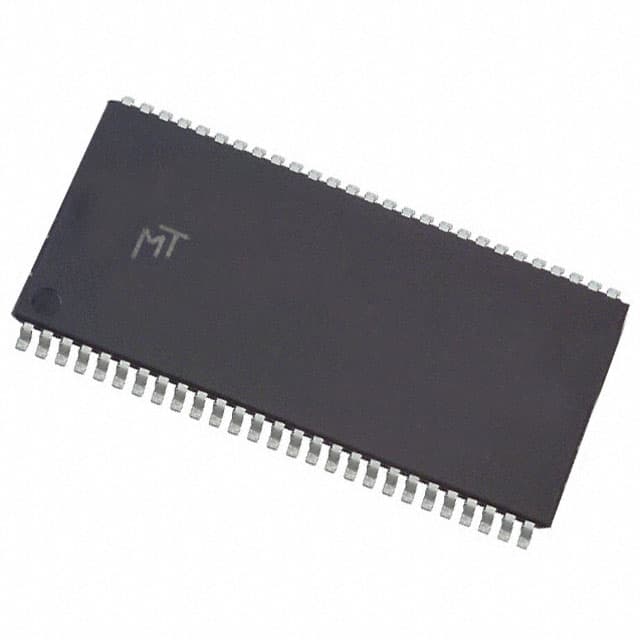

MICRON MT48LC16M16A2P-6A:G

Manufacturer No:

MT48LC16M16A2P-6A:G

Manufacturer:

MICRON

Package:

54-TSOP (0.400, 10.16mm Width)

Description:

Surface Mount 54 Pin Memory IC MT48LC16M16A2 256 Mb kb 22.22mm mm 100mA mA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MT48LC16M16A2P-6A:G information

MICRON MT48LC16M16A2P-6A:G technical specifications, attributes, parameters and parts with similar specifications to MICRON MT48LC16M16A2P-6A:G.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
54-TSOP (0.400, 10.16mm Width)

Number of Pins
54

Manufacturer Package Identifier
TG/P

Memory Types
Volatile

Usage Level
Commercial grade

Operating Temperature
0°C~70°C TA

Packaging
Tray

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
54

ECCN Code
EAR99

Additional Feature
AUTO/SELF REFRESH

Voltage - Supply
3V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
MT48LC16M16A2

Pin Count
54

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Memory Size
256Mb 16M x 16

Number of Ports
1

Nominal Supply Current
100mA

Clock Frequency
167MHz

Access Time
5.4ns

Memory Format
DRAM

Memory Interface
Parallel

Data Bus Width
16b

Organization
16MX16

Output Characteristics
3-STATE

Write Cycle Time - Word, Page
12ns

Address Bus Width
15b

Density
256 Mb

Standby Current-Max
0.0025A

I/O Type
COMMON

Max Junction Temperature (Tj)
85°C

Ambient Temperature Range High
70°C

Download datasheets and manufacturer documentation for MICRON MT48LC16M16A2P-6A:G.

MT48LC16M16A2P-6A:G Overview

In addition, memory ics is available in a Tray case as well. In the case of 54-TSOP (0.400, 10.16mm Width), it is embedded within the case. A memory chip with a capacity of 256Mb 16M x 16 is used on this device. There is a mainstream memory format used by this device, which is called DRAM-format memory. This device has an extended operating temperature range of 0°C~70°C TA, so it's perfect for a wide range of demanding applications. It is capable of handling a voltage supply of 3V~3.6V. As far as the mounting type is concerned, Surface Mount is recommended. On the chip, there are 54 terminations that are planted. The part supports at least 1 functions to ensure a comprehensive working process. In order to function properly, this ic memory chip should be powered by a voltage of 3.3V. In the memory, there is a clock frequency rotation that ranges 167MHz. In order to select similar parts, typical manufacturers refer to MT48LC16M16A2 as the device's base part number. The memory device has an 54-pin package, which encloses it in a small package. I have noticed that the memory device has 54 pins, which indicates that it has 54 locations in the memory. According to the datasheet, this memory chip operates at an operating voltage of 3.3V. In this chip, the Surface Mount mounting method is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component has a rating of 100mA. The memory chip also offers AUTO/SELF REFRESH to level up system performance despite its merits. The memory chip has 1 ports for granting read/write access to one memory address. There are I/O ports on this memory ics that have COMMON-bit memory mapping.

MT48LC16M16A2P-6A:G Features

Package / Case: 54-TSOP (0.400, 10.16mm Width)
54 Pins
Operating Supply Voltage:3.3V
Additional Feature:AUTO/SELF REFRESH
I/O Type: COMMON

MT48LC16M16A2P-6A:G Applications

There are a lot of Micron Technology Inc.
MT48LC16M16A2P-6A:G Memory applications.

servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
