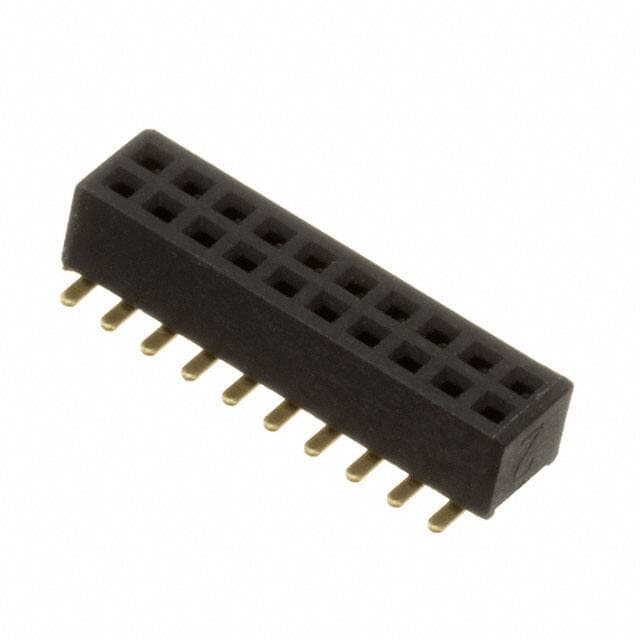

Adam Tech MRS2-20-U-SMT

Manufacturer No:

MRS2-20-U-SMT

Manufacturer:

Adam Tech

Package:

Description:

2 Rows Header Solder Phosphor Bronze Surface Mount Tube Gold Thermoplastic 20 Positions Female Socket

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MRS2-20-U-SMT information

Adam Tech MRS2-20-U-SMT technical specifications, attributes, parameters and parts with similar specifications to Adam Tech MRS2-20-U-SMT.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Thermoplastic

Board Mounting Option
LOCATING POSTS

Operating Temperature
-40°C~105°C

Packaging
Tube

Series
MRS2

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
20

Applications
General Purpose

Number of Rows
2

Voltage - Rated
250VAC

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

Contact Type
Female Socket

Total Number of Contacts
20

Terminal Pitch
0.9906mm

Insulation Height
0.089 2.26mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.039 1.00mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Body Length or Diameter
0.41 inch

Row Spacing - Mating
0.039 (1.00mm)

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.098 inch

Body Depth
0.089 inch

Contact Resistance
40mOhm

Insulation Resistance
500000000Ohm

Mating Contact Pitch
0.039 inch

Contact Finish Thickness - Mating
Flash

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Adam Tech MRS2-20-U-SMT.

MRS2-20-U-SMT Overview

This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the MRS2 Series.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.There is the possibility of using the device for General Purpose.Operating temperature is set to -40°C~105°C.

MRS2-20-U-SMT Features

MRS2 series

MRS2-20-U-SMT Applications

There are a lot of Adam Tech
MRS2-20-U-SMT Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
