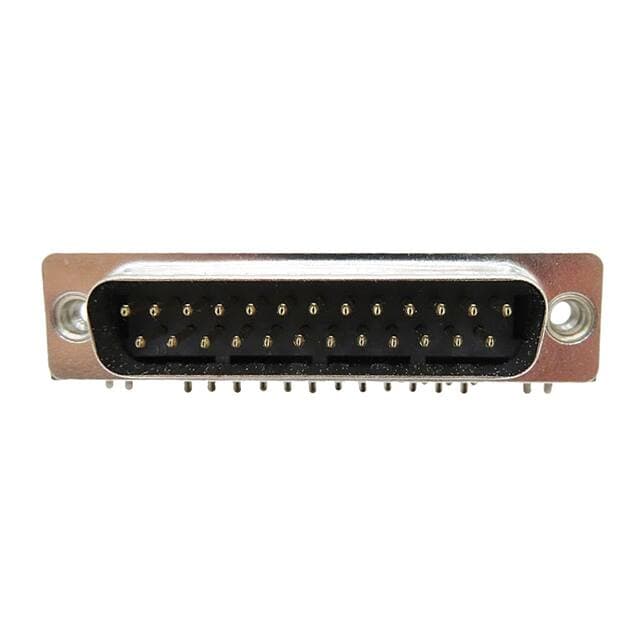

Adam Tech DB25-PL-24

Manufacturer No:

DB25-PL-24

Manufacturer:

Package:

Description:

DPL Series D-Sub Plug, Male Pins 25-Position Solder 3 DB B Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DB25-PL-24 information

Adam Tech DB25-PL-24 technical specifications, attributes, parameters and parts with similar specifications to Adam Tech DB25-PL-24.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Copper Alloy

Mounting Type
Through Hole, Right Angle

Material
Metal

Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled

Shell Material, Finish
Steel, Tin Plated

Mounting Option 2
INSERT

Operating Temperature
-55°C~105°C

Packaging
Tray

Series
DPL

Feature
Board Lock, Grounding Indents

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Plug, Male Pins

Number of Positions
25

Color
Black

Number of Rows
2

Voltage - Rated
250VAC

Additional Feature
ROHS COMPLIANT

Subcategory
D Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Total Number of Contacts
25

Orientation
Right Angle

Shell Finish
TIN

Reference Standard
UL, CSA

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
STAGGERED

Body Breadth
0.494 inch

UL Flammability Code
94V-0

Empty Shell
NO

Body Depth
0.488 inch

Contact Style
RND PIN-SKT

Insulation Resistance
5000000000Ohm

Flange Feature
Housing/Shell (4-40)

Mating Contact Pitch
0.109 inch

Dielectric Withstanding Voltage
1000VAC V

Connector Style
D-Sub

Contact Pattern
STAGGERED

Contact Form
Stamped

Download datasheets and manufacturer documentation for Adam Tech DB25-PL-24.

Datasheets:

adamtech-db25pl24-datasheets-7178.pdf

adamtech-db25pl24-datasheets-7179.pdf

DB25-PL-24 Overview

It comes in a Plug, Male Pins package.Mounting type is Through Hole, Right Angle.To package the product, we use a Tray case.This product is from the DPL Series.Then there's ROHS COMPLIANT, for example.A number of advantages are provided by its Board Lock, Grounding Indents feature.Device runs at -55°C~105°C Operating Temperature.

DB25-PL-24 Features

DPL series

DB25-PL-24 Applications

There are a lot of Adam Tech
DB25-PL-24 D-Sub Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
