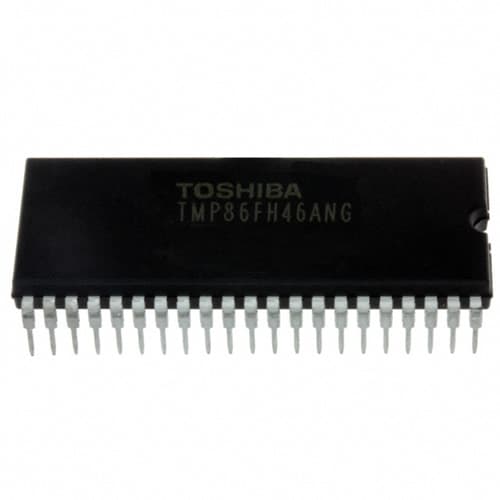

TOSHIBA TMP86FH46ANG

Manufacturer No:

TMP86FH46ANG

Manufacturer:

TOSHIBA

Package:

Description:

Microcontroller 42 Pin 16MHz 5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMP86FH46ANG information

TOSHIBA TMP86FH46ANG technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TMP86FH46ANG.

Type
Parameter

Mount
Through Hole

Number of Pins
42

Packaging
Bulk

Pbfree Code
yes

Number of Terminations
42

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.2 MHZ

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
DUAL

Supply Voltage
5V

Terminal Pitch
1.778mm

Frequency
16MHz

Pin Count
42

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Interface
UART

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Memory Size
16kB

Power Dissipation-Max
250mW

Number of I/O
33

RAM Size
512B

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Supply Current-Max
18mA

Bit Size
8

Frequency (Max)
16MHz

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
NO

Data Bus Width
8b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
3

CPU Family
TLCS-870/C

Number of Programmable I/O
33

RAM (bytes)
512

Height Seated (Max)
4.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TMP86FH46ANG.

Datasheets:

toshiba-tmp86fh46ang-datasheets-8975.pdf

toshiba-tmp86fh46ang-datasheets-8976.pdf

toshiba-tmp86fh46ang-datasheets-8977.pdf

TMP86FH46ANG Overview

The MCU has 33 I/O ports. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 42 of terminations. A 8-bit operation is performed by this part. There is an output of 5V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. This MCU is implemented with 16kB memory. It exhibits good efficiency when it operates at a frequency of 16MHz and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. It is possible to access the 42 pins on the chip through the 42 pins. It is equipped with 3 timers and counters. It consists of 42 pins. As far as the CPU is concerned, it is embedded with the the TLCS-870/C family of processors. There's an integrated FLASH memory in the equipment. Among the eight programmable I/O sections, there are many different ways in which it can be programmed. In addition, there are several other features that can be found in the software, including ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.2 MHZ.

TMP86FH46ANG Features

Microcontrollers subcategory
Minimum temperature of -40°C

TMP86FH46ANG Applications

There are a lot of Toshiba
TMP86FH46ANG Microcontroller applications.

Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
DVD\DV\MP3 players
