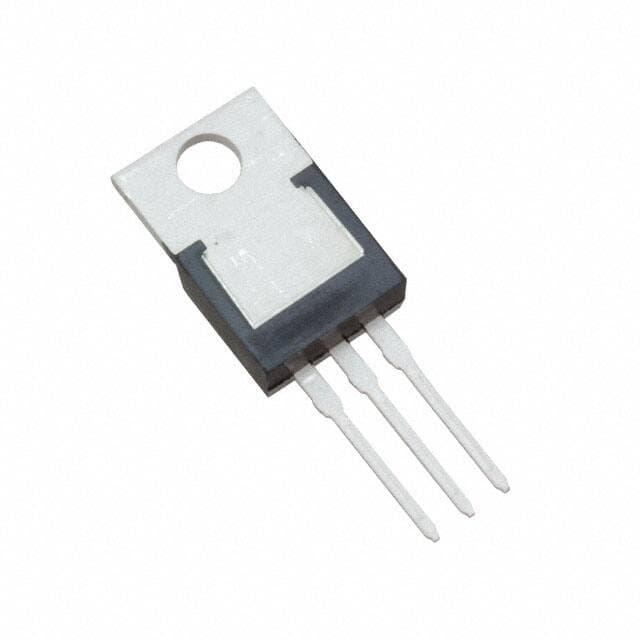

NXP MRF101AN

Manufacturer No:

MRF101AN

Manufacturer:

NXP

Package:

TO-220-3

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MRF101AN information

NXP MRF101AN technical specifications, attributes, parameters and parts with similar specifications to NXP MRF101AN.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
TO-220-3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - Rated
133V

Current Rating (Amps)
10?A

Frequency
1.8MHz~250MHz

Current - Test
100mA

Transistor Type
LDMOS

Gain
21.1dB

Power - Output
115W

Voltage - Test
50V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MRF101AN.

Description

The MRF101AN is an RF Power LDMOS Transistor, High Ruggedness N-Channel, Enhancement-Mode Lateral MOSFETs. These gadgets are made for HF and VHF communications, as well as industrial, scientific, and medical (ISM), broadcast, and aerospace applications. The equipment is very durable and performs well up to 250 MHz.

Features

Integrated ESD protection with greater negative gate-source
Voltage range for improved Class C operation
Included in NXP product longevity program with assured
Supply for a minimum of 15 years after launch
Mirror pinout versions (A and B) to simplify use in a push-pull,
Two-up configuration
Characterized from 30 to 50 V
Suitable for linear application

Applications

Radio and VHF TV broadcast
HF and VHF communications
Switch mode power supplies
Industrial, scientific, medical (ISM)

? Laser generation

? Plasma etching

? Particle accelerators

? MRI and other medical applications

? Industrial heating, welding and drying systems
