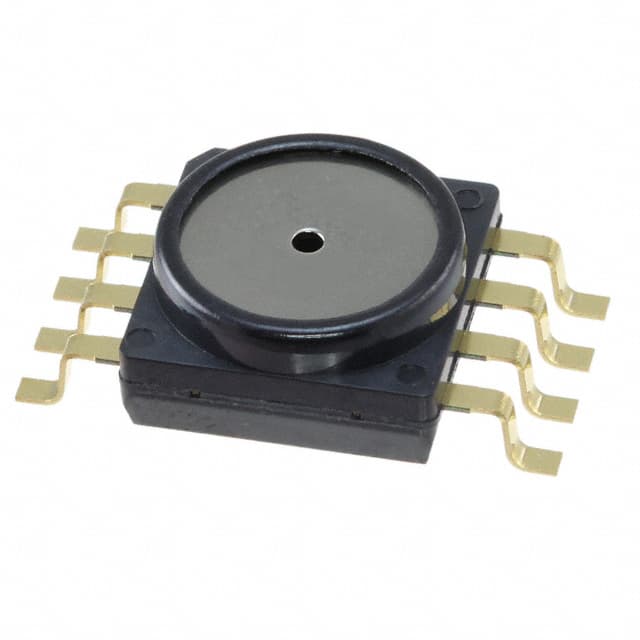

NXP MPXA6115A6U

Manufacturer No:

MPXA6115A6U

Manufacturer:

NXP

Package:

8-SMD Module

Description:

MPXA6115A Series Absolute Pressure Sensor Analog Voltage -40°C~125°C 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) No Port ±1.5% 0.2 V ~ 4.7 V 4.75V~5.25V Temperature Compensated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPXA6115A6U information

NXP MPXA6115A6U technical specifications, attributes, parameters and parts with similar specifications to NXP MPXA6115A6U.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
8-SMD Module

Surface Mount
YES

Mounting Feature
SURFACE MOUNT

Operating Temperature
-40°C~125°C

Series
MPXA6115A

Published
2004

Feature
Temperature Compensated

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

ECCN Code
EAR99

Applications
Board Mount

HTS Code
8542.31.00.01

Voltage - Supply
4.75V~5.25V

Output
0.2 V ~ 4.7 V

Termination Style
SMD (SMT) Tab

Body Length or Diameter
10.66mm

Body Breadth
10.66 mm

Output Type
Analog Voltage

Accuracy
±1.5%

Response Time
1000 µs

Operating Pressure
2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)

Pressure Type
Absolute

Port Style
No Port

Maximum Pressure
58.02PSI (400kPa)

Sensors/Transducers Type
PRESSURE SENSOR,PEIZORESISTIVE

Housing
PLASTIC

Pressure Range-Max
16.7 Psi

Offset-Nom
0.20V

Sensitivity (mV/V)
45.9 mV/V

Body Height
5.61mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MPXA6115A6U.

MPXA6115A6U Overview

As a convenience, this transducer is included in 8-SMD Module. Temperature should be set at -40°C~125°C on transducers in order for them to work reliably. Obtaining a 4.75V~5.25V supply voltage is not a problem for the transducers. There is a maximum pressure range of 16.7 Psi set by this transducer.

MPXA6115A6U Features

Moisture Sensitivity Level: Not Applicable
Package / Case: 8-SMD Module
Operating Temperature: -40°C~125°C
MPXA6115A series
Sensitivity (mV/V): 45.9 mV/V
Operating Pressure: 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa)

MPXA6115A6U Applications

There are a lot of NXP USA Inc.
MPXA6115A6U Transducers applications.

Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
Vertical velocity indication (e.g. rise/sink speed)
Internet of things
Enhancement of GPS navigation
Indoor navigation & localization (floor detection, elevator detection)
