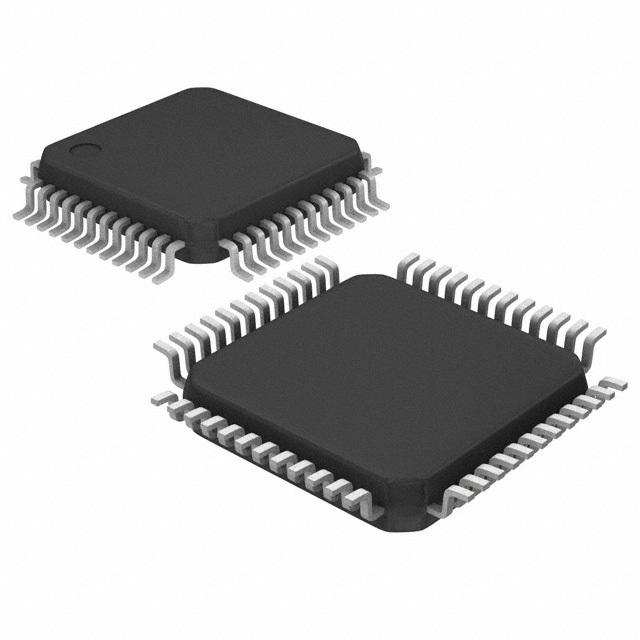

Renesas MPC9893AE

Manufacturer No:

MPC9893AE

Manufacturer:

Renesas

Package:

TQFP

Description:

2.5V 200MHz Clock Generators 48 Pins TQFP 48 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC9893AE information

Renesas MPC9893AE technical specifications, attributes, parameters and parts with similar specifications to Renesas MPC9893AE.

Type
Parameter

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
48

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 3.3V SUPPLY

Subcategory
Clock Drivers

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
48

Operating Supply Voltage
3.3V

Number of Circuits
1

Max Supply Voltage
3.465V

Min Supply Voltage
2.375V

Nominal Supply Current
5mA

Frequency (Max)
200MHz

Family
9893

Output Characteristics
3-STATE

Input
LVCMOS

Logic IC Type
PLL BASED CLOCK DRIVER

fmax-Min
60 MHz

Number of True Outputs
12

Length
7mm

Width
7mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas MPC9893AE.

Datasheets:

integrateddevicetechnology-mpc9893ae-datasheets-1116.pdf

MPC9893AE Overview

A Clock PLL is included with the TQFP package. Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 48 terminations. Clock generator ics require a voltage of 2.5V. As the Clock PLL's input, LVCMOS is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 200MHz. It is a 48-bit IC that is designed for microprocessors specifically. The clock PLL has 48 pins that are available. A frequency generator with -40°C operations has an impressive low-temperature performance. At a temperature of 85°C, the clock generator ic can operate with attenuated performance. In terms of the supply voltage, PLL clock can handle 3.3V volts. Fundamentally, this is a kind of Clock Drivers clock PLL. This frequency synthesizer features ALSO OPERATES AT 3.3V SUPPLY to produce better clock signals. Analog clock generator is configured with 12 pins that enable the high true output. By searching for the 9893 family, it is possible to find similar electrical components. A voltage exceeding 3.465V is not acceptable for supply to this frequency generator. This clock generator ic requires a voltage supply no lower than 2.375V. Logic circuits that use PLL BASED CLOCK DRIVER logic are composed of this analog clock generator.

MPC9893AE Features

Available in the TQFP
Supply voltage of 2.5V
Operating supply voltage of 3.3V
12 true outputs

MPC9893AE Applications

There are a lot of Integrated Device Technology (IDT)
MPC9893AE Clock Generators applications.

10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
Test equipment
