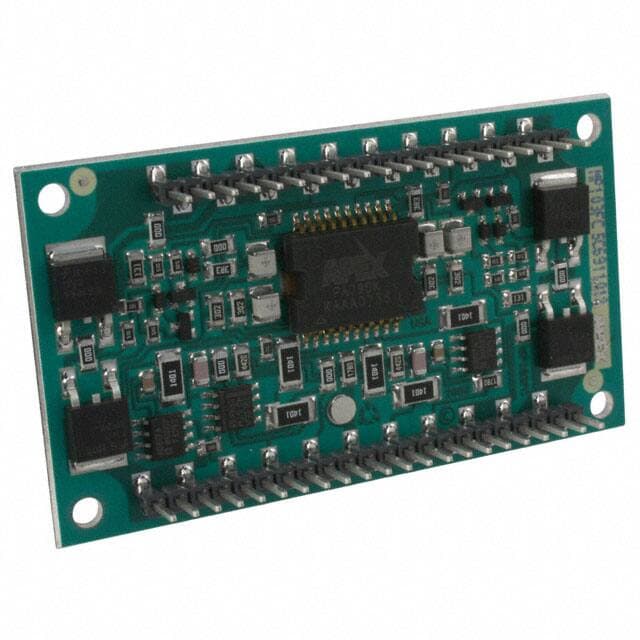

APEX MP103FC

Manufacturer No:

MP103FC

Manufacturer:

APEX

Package:

42-DIP Module

Description:

12A per Channel 3.3μA Instrumentational OP Amps 6.6μA 30V~200V ±15V~100V MP*FC 42 Pins 42-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MP103FC information

APEX MP103FC technical specifications, attributes, parameters and parts with similar specifications to APEX MP103FC.

Type
Parameter

Factory Lead Time
5 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
42-DIP Module

Operating Temperature
0°C~70°C

Packaging
Tray

Series
Apex Precision Power®

Published
2015

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
42

ECCN Code
EAR99

Subcategory
Operational Amplifier

Terminal Position
DUAL

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
24V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MP*FC

Pin Count
42

Qualification Status
Not Qualified

Number of Circuits
2

Slew Rate
167V/μs

Amplifier Type
Power

Current - Input Bias
3.3μA

Voltage - Supply, Single/Dual (±)
30V~200V ±15V~100V

Output Current per Channel
12A

Input Offset Voltage (Vos)
2mV

Average Bias Current-Max (IIB)
6.6μA

Supply Voltage Limit-Max
30V

-3db Bandwidth
230kHz

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX MP103FC.

Datasheets:

apexmicrotechnology-mp103fc-datasheets-4333.pdf

MP103FC Overview

There is a 42-DIP Module case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Power-types. A Tray case is used to deliver the buffer op amp. The number of terminations is approaching the 42 mark. The total number of pins on linear amplifier is 42. The linear amplifier should be run at 24V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. As far as the input offset voltage is concerned, linear amplifier rates at 2mV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of 0°C~70°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 19mA . A linear amplifier like this has 2 circuits on it. The Apex Precision Power® represents the op amp's series number.

MP103FC Features

42 Pins
supply voltage of 24V

MP103FC Applications

There are a lot of Apex Microtechnology
MP103FC Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
