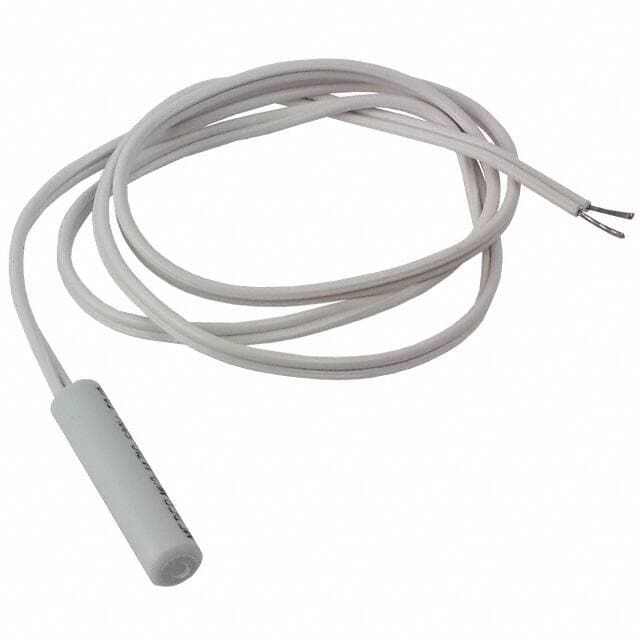

Standex MK03-1A66B-500W

Manufacturer No:

MK03-1A66B-500W

Manufacturer:

Standex

Package:

Molded Body

Description:

MK03 Series Reed Switch Wire Leads SPST-NO Magnet -30°C~70°C TA Molded Body

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MK03-1A66B-500W information

Standex MK03-1A66B-500W technical specifications, attributes, parameters and parts with similar specifications to Standex MK03-1A66B-500W.

Type
Parameter

Factory Lead Time
12 Weeks

Package / Case
Molded Body

Actuator Material
Magnet

Operating Temperature
-30°C~70°C TA

Series
MK03

Published
2002

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Wire Leads

Type
Reed Switch

Resistance
150mOhm

Termination Style
Wire Leads

Output Type
SPST-NO

Lead Length
500mm

Operating Supply Voltage
200V

Contact Resistance
150mOhm

Operating Supply Current
1.25A

Nominal Supply Current
250mA

Throw Configuration
SPST

Max Voltage Rating (DC)
180V

Response Time
100 ?s

Sensing Distance
15 mm

Switching Voltage
180V

Sensing Method
Magnetic

Housing
PBT GLASS FIBER REINFORCED

Must Operate
10 ~ 60AT

Must Release
4 ~ 54AT

Height
5.75mm

Length
25.5mm

Width
5.75mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Standex MK03-1A66B-500W.

MK03-1A66B-500W Overview

In Molded Body packages, magnetic position sensor modules are placed. A magnetic position sensor module should operate with a supply voltage of 200V. The current drawn by the magnetic position sensors modules could be 1.25A. It is generally assumed that this sensors module draws 250mA current.

MK03-1A66B-500W Features

Package / Case: Molded Body
MK03 Series
Operating Temperature: -30°C~70°C TA
Operating Supply Voltage: 200V
Operating Supply Current: 1.25A
Response Time: 100 ?s

MK03-1A66B-500W Applications

There are a lot of Standex-Meder Electronics
MK03-1A66B-500W Magnetic Position Sensors Modules applications.

End of travel and index sensors
Industrial controls
White goods
Position and limit sensing
RPM measurement
Flow metering
Commutation of brushless DC motors
Factory automation
Angle sensing
Magnetic encoders
