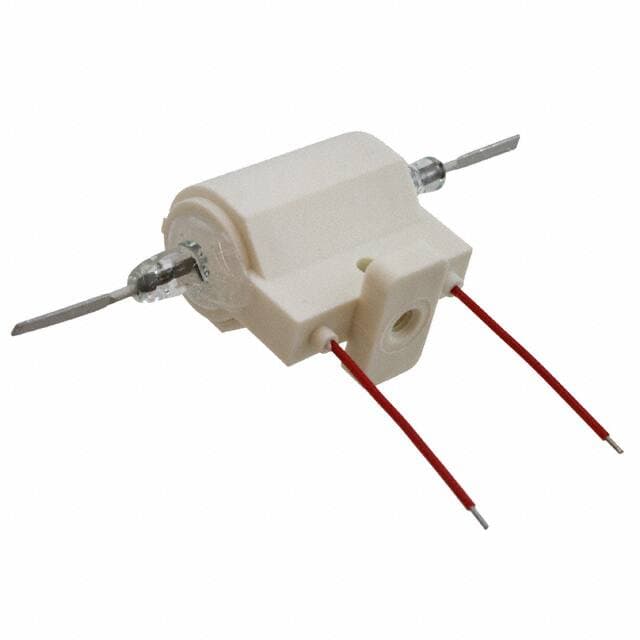

Standex H24-1A83
Manufacturer No:
H24-1A83
Manufacturer:
Package:
SIP
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
H24-1A83 information
Standex H24-1A83 technical specifications, attributes, parameters and parts with similar specifications to Standex H24-1A83.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Chassis Mount, Through Hole
- Mounting Type
- Chassis Mount
- Package / Case
- SIP
- Number of Pins
- 2
- Weight
- 30g
- Operating Temperature
- -20°C~70°C
- Packaging
- Bulk
- Series
- H
- Published
- 2002
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Wire Leads
- ECCN Code
- EAR99
- Terminal Finish
- TIN
- HTS Code
- 8536.49.00.50
- Termination Style
- Wire Leads
- Contact Resistance
- 150mOhm
- Contact Current(DC)-Max
- 3A
- Sealing
- WATER PROOF
- Contact Voltage(DC)-Max
- 7500V
- Electrical Life
- 50000000 Cycle(s)
- Throw Configuration
- SPST
- Relay Type
- Reed
- Contact Current(AC)-Max
- 3A
- Coil Resistance
- 700Ohm
- Contact (AC) Max Rating R Load
- 3A@7500VAC
- Operate Time
- 3.2ms
- Coil Voltage
- 24VDC
- Coil Type
- Non Latching
- Switching Voltage
- 7500VAC 7500VDC -Max
- Coil Current
- 34.3mA
- Release Time
- 1.5ms
- Contact (DC) Max Rating R Load
- 3A@7500VDC
- Must Operate Voltage
- 18VDC
- Coil Power
- 822mW
- Must Release Voltage
- 2VDC
- Contact Voltage(AC)-Max
- 7500V
- Contact/Output Supply Type
- AC/DC
- Relay Action
- MOMENTARY
- Coil Voltage (DC)
- 24V
- Coil/Input Supply Type
- DC
- Switching Current
- 3A
- Width
- 18mm
- Body Height
- 30mm
- REACH SVHC
- No SVHC
Download datasheets and manufacturer documentation for Standex H24-1A83.
