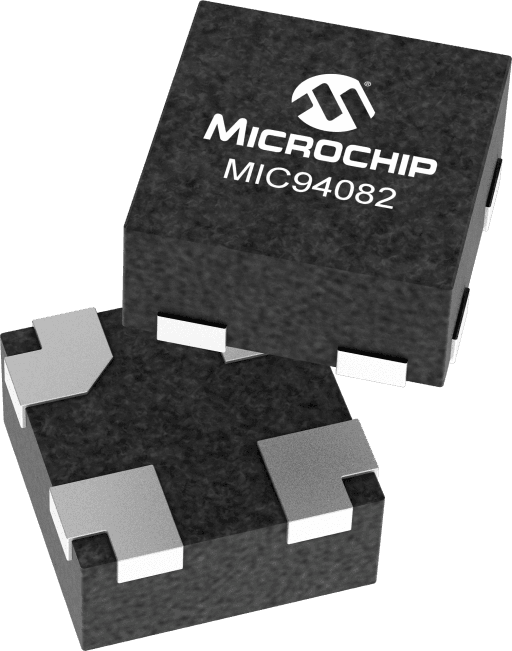

Microchip MIC94082YFT-TR

Manufacturer No:

MIC94082YFT-TR

Manufacturer:

Microchip

Package:

4-UFDFN, 4-TMLF®

Description:

High-side Load Switch, 2A, 67mOhm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC94082YFT-TR information

Microchip MIC94082YFT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC94082YFT-TR.

Type
Parameter

Driver Type
Single High-Side Load Switches

Vin Min (V)
1.7

Vin Max (V)
5.5

Max SW Current (A)
2

RDS ON @5V (mO)
67

Soft Start (µS)
800

Enable Logic
High True

VEN (V)
1.25

Oja (C/W)
140

Download datasheets and manufacturer documentation for Microchip MIC94082YFT-TR.

Data Sheets:

3e05714e88f3477dc89e141ca25db3d4.pdf

The MIC94080/1/2/3/4/5 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 67mΩ RDSON P-Channel MOSFET which enables the device to support up to 2A of continuous current.

The MIC94080 and MIC94081 feature rapid turn on. The MIC94082 and MIC94083 provide a slew rate controlled soft-start turn-on of 850µs, while the MIC94084 and MIC94085 provide a slew rate controlled soft-start turn-on of 120µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.

The MIC94081, MIC94083, and MIC94085 feature an active load discharge circuit which switches in a 250Ω load when the switch is disabled to automatically discharge a capacitive load.

An active pull-down on the enable input keeps the MIC94080/1/2/3/4/5 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage.

The MIC94080/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.

1.7V to 5.5V input voltage range
2A continuous operating current
67mΩ RDSON
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Soft-Start: MIC94082/3 (800µs), MIC94084/5 (120µs)
Load discharge circuit: MIC94081, MIC94083, MIC94085
Ultra fast turn off time
Junction operating temperature from -40°C to +125°C
