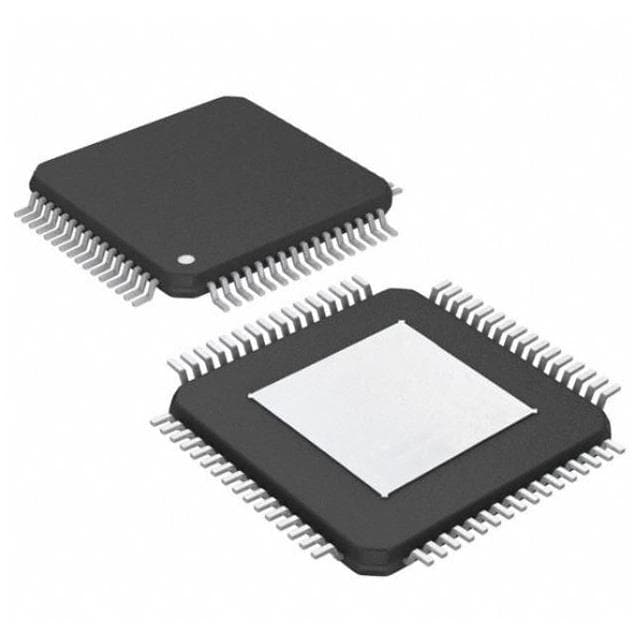

Microchip SY89826LHY

Manufacturer No:

SY89826LHY

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

3.3V 1:22 LVDS Fanout/Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89826LHY information

Microchip SY89826LHY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89826LHY.

Type
Parameter

Description
2:22

Input
LVPECL/LVDS

Output
LVDS

Supply Voltage
3.3

Max Freq (GHz)
1

Icc (mA)
175

Max Within Device Skew (ps)
50

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:22

Max Prop Delay (ps)
1250

Download datasheets and manufacturer documentation for Microchip SY89826LHY.

Data Sheets:

029111962d982a6975bea513035fb3e0.pdf

User Guide:

e3c289f6da3af4d74316fa967eb03d11.pdf

The SY89826L is a precision fanout buffer with 22 differential LVDS (Low Voltage Differential Swing) output pairs. The part is designed for use in low voltage 3.3V applications that require a large number of outputs to drive precisely aligned, ultra low-skew signals to their destination.The input is multiplexed from either LVDS or LVPECL (Low Voltage Positive Emitter Coupled Logic) by the CLK_SEL pin. The OE (Output Enable) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89826L features a low pin-to-pin skew of less than 50ps--performance previously unachievable in a standard product having such a high number of outputs.The SY89826L is available in a single space saving package, enabling a lower overall cost solution.

High-performance, 1GHz LVDS fanout buffer/ translator
22 differential LVDS output pairs
>1GHz fMAX
<50ps within device skew
<400ps tr/tf time
Low jitter performance
<1psrms cycle-to-cycle jitter
<1ps (pk-pk) total jitter
2:1 mux input accepts LVDS and LVPECL
3.3V supply voltage
LVDS input includes internal 100O termination
Output enable function
Available in a 64-Pin EPAD-TQFP

User Guide
