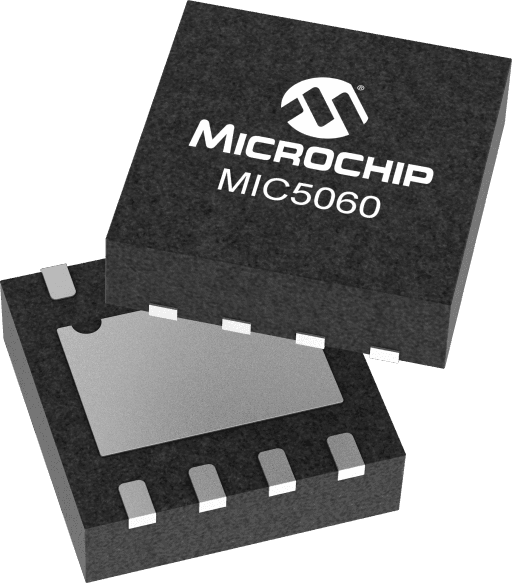

Microchip MIC5060YML-TR
Microchip MIC5060YML-TR

Microchip MIC5060YML-TR

Manufacturer No:

MIC5060YML-TR

Manufacturer:

Microchip

Package:

8-VFDFN Exposed Pad, 8-MLF®

Description:

Ultra Small High or Low Side MOSFET Gate Driver

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

MIC5060YML-TR Information

Microchip MIC5060YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC5060YML-TR.

  • Type
  • Parameter
  • MOSFET Driver Type
  • High Side
  • Configuration
  • Non-Inverting
  • Maximum Supply Voltage (V)
  • 30
  • Peak Source Output (A)
  • 0.0008
  • Peak Sink Output (A)
  • 0.0008
  • Source Resistance (Ω)
  • 0
  • Sink Resistance (Ω)
  • 0
  • Propagation Delay t<sub>D1</sub> (ns)
  • 0
  • Propagation Delay t<sub>D2</sub> (ns)
  • 0
  • Rise Time (t<sub>R</sub>, ns)
  • 90,000
  • Type
  • Parameter
  • Fall Time (t<sub>F</sub>, ns)
  • 6,000
  • Capacitive Load Drive
  • 1000 pF in 60 µs

Download datasheets and manufacturer documentation for Microchip MIC5060YML-TR.

Data Sheets:

The MIC5060 MOSFET gate driver is designed for gate control of N-Channel, enhancement-mode, and power MOSFETs used as high-side or low-side switches. The MIC5060 can sustain an on-state output indefinitely.

The MIC5060 operates from a 2.75 V to 30 V supply. In high-side configurations, the driver can control MOSFETs that switch loads of up to 30 V. In low-side configurations, with separate supplies, the maximum switched voltage is limited only by the MOSFET.

The MIC5060 has a non-inverting, TTL-compatible control input. The MIC5060 features an internal charge pump that can sustain a gate voltage greater than the available supply voltage. The driver is capable of turning on a logic-level MOSFET from a 2.75 V supply or a standard MOSFET from a 5 V supply. The gate-to-source output voltage is internally limited to approximately 15 V.

The MIC5060 is protected against automotive load dump, reversed battery, and inductive load spikes of -20 V. The driver's overvoltage shutdown feature turns off the external MOSFET at approximately 35 V to protect the load against power supply excursions. The MIC5060 is available in a 3 x 3 mm MLF® package.



  • 2.75 V to 30 V operation
  • 100 µA maximum supply current (5 V supply)
  • 15 µA typical off-state current
  • Internal charge pump
  • TTL-compatible input
  • Withstands 60V transient (load dump)
  • Reverse battery protected to -20 V
  • Inductive spike protected to -20 V
  • Overvoltage shutdown at 35 V
  • Internal 15 V gate protection
  • Minimum external parts
  • Operates in high-side or low-side configurations
  • 1 µA control input pull-off
  • Available in 8-pin 3 x 3 mm MLF® package
