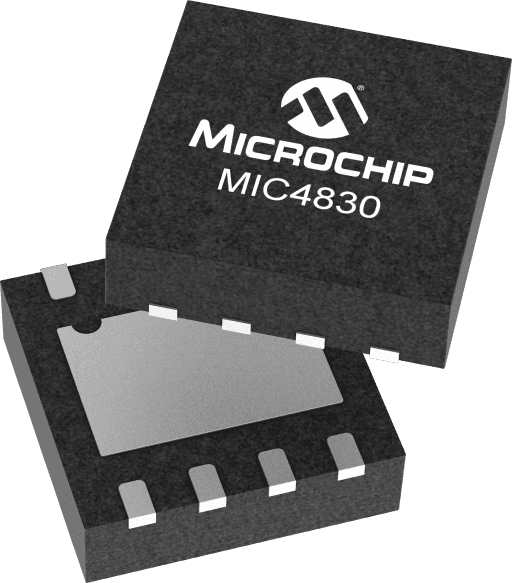

Microchip MIC4830YML-TR

Manufacturer No:

MIC4830YML-TR

Manufacturer:

Microchip

Package:

8-VFDFN Exposed Pad, 8-MLF®

Description:

Inductor Based Single Lamp EL Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC4830YML-TR information

Microchip MIC4830YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC4830YML-TR.

Type
Parameter

Type
Single Lamp Driver

Input Voltage Low (V)
1.8

Input Voltage High (V)
5.5

Nominal Output Voltage (V)
±90

Max Switch Resistance (Ω)
7.0

Output Regulation
Yes

Max Lamp Size per Device (in2)
4.0

Package
8/MSOP, 8/VDFN

Product Type
Electroluminescent Drivers

Operating Iq (µA)
0

Frequency(EL, Typical)
158Hz - 242Hz

Oja (C/W)
206, 63

VOUT
180

Download datasheets and manufacturer documentation for Microchip MIC4830YML-TR.

Data Sheets:

067bd89ec4281dc4b39cce56aee3497c.pdf

The MIC4830 is a low noise 180VPP electroluminescent (EL) lamp driver. Using advanced Bipolar, CMOS, DMOS (BCD) technology, the MIC4830 integrates a high voltage boost converter and an H-bridge driver for driving a large EL lamp. The MIC4830 can drive large panel displays for mobile phones, MP3 players, or automotive electronics where EL panels are used for backlighting. The MIC4830 offers design flexibility with adjustable lamp and boost converter frequencies, simply by applying external resistors. A new H-bridge design reduces audible noise by creating smoother AC voltage across the EL panel. The MIC4830 is offered in MSOP-8 Pb-free and RoHS-compliant packaging with a -40°C to 85°C junction temperature range.

1.8V to 5.5V input voltage
180VPP output voltage
Low audible noise EL drive waveform
Supports EL panel sizes up to 4in² (25cm²)
Low 45µA operating supply current
Small inductor size with low profile (220µH)
Adjustable boost converter frequency
Adjustable EL lamp frequency
Low 10nA shutdown current

User Guide
