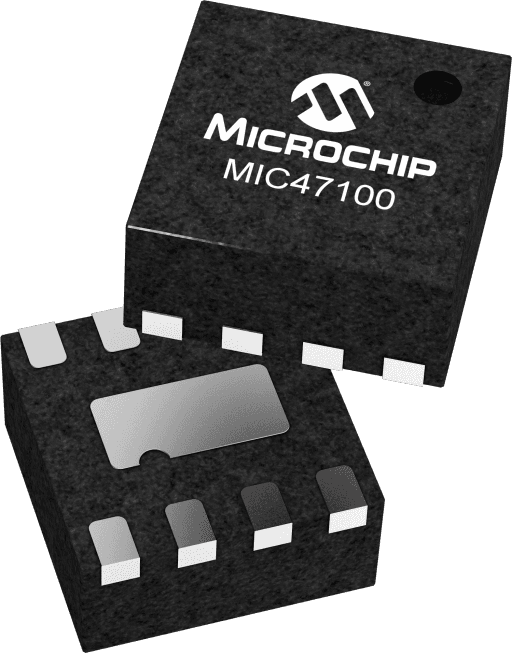

Microchip MIC47100-08YMME-TR
Manufacturer No:
MIC47100-08YMME-TR
Manufacturer:
Microchip
Package:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad
Description:
1A High Speed, Low Vin LDO
Quantity:
In Stock :2998
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 9 - Wed, Jun 10, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC47100-08YMME-TR Information
Microchip MIC47100-08YMME-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC47100-08YMME-TR.
- Type
- Parameter
- VIN Min (V) V (volt)
- 1
- VIN Max V (volt)
- 3.6
- VOUT V (volt)
- 0.8, 1.0, 1.2
- IOUT #1 Max mA (milliampere)
- 1000
- Rated IOUT Max mA (milliampere)
- 1000
- Quiescent Current µA (microampere)
- 350
- Voltage Drop Typ (mV)
- 80
- Accuracy (+/-) %
- 2
- Adjustable VOUT
- Yes
- Reverse Battery
- No
- Type
- Parameter
- Bypass Pin
- No
- Current Limit
- Yes
- Shutdown EN
- Yes
- Power Good Signal
- No
- Thermal Shutdown
- Yes
Download datasheets and manufacturer documentation for Microchip MIC47100-08YMME-TR.
Data Sheets:
The MIC47100 is a high speed, low VIN LDO capable of delivering up to 1A and designed to take advantage of point-of-load applications that use multiple supply rails to generate a low-voltage, high-current power supply. The MIC47100 is stable with only a 1µF ceramic output capacitor and is available in a thermally enhanced, making it an optimal solution for board-constrained applications.
The MIC47100 has an NMOS output stage offering very low output impedance. The NMOS output stage offers a unique ability to respond very quickly to sudden load changes such as that required by a microprocessor, DSP, or FPGA. The MIC47100 consumes little quiescent current and therefore can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any portable device.
The MIC47100 is available in fixed and adjustable output voltages in the ePad MSOP-8 package with an operating junction temperature range of -40°C to +125°C.
- Input Supply: 1.0V to 3.6V
- Bias Supply: 2.3V to 5.5V
- 0.8V to 2.0V output voltage range
- High bandwidth: very fast transient response
- PSRR >50dB at 100kHz
- Stable with a 1µF ceramic output capacitor
- Low dropout voltage of 80mV at 1A
- ±1.5% initial accuracy
- ±2% over temperature
- Logic level enable input
- UVLO on both supply voltages for easy turn-on
- ePad MSOP-8: small form factor power package
