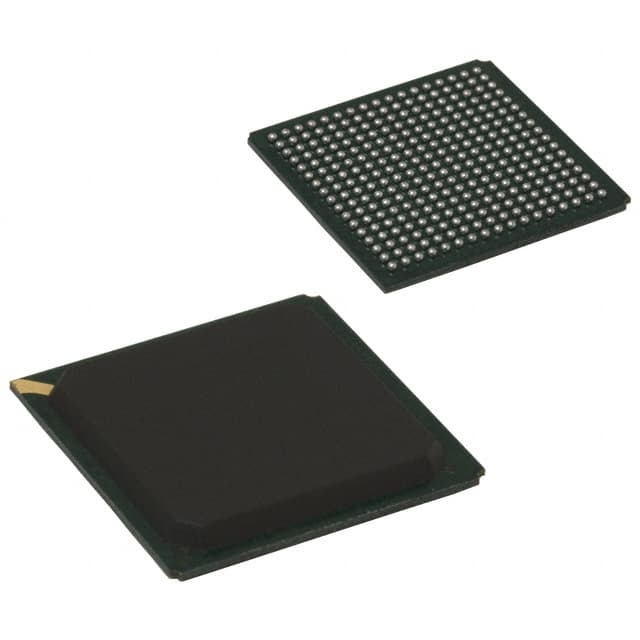

Microchip KSZ8695PI

Manufacturer No:

KSZ8695PI

Manufacturer:

Microchip

Package:

289-PBGA

Description:

The KSZ8695, a 10/100 Base-T/TX 5-Port Ethernet SoC Controller, delivers a high level of networking integration and performance for accelerating broadband gateway development.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KSZ8695PI information

Microchip KSZ8695PI technical specifications, attributes, parameters and parts with similar specifications to Microchip KSZ8695PI.

Type
Parameter

DownstreamPorts
5

ESD Rating
0

Port Speed
10/100Mbps

Fiber Support
Yes

LEDS
6

NoofEtherPorts
5

TX/RX Ram Buffer
8k

Temperature Range Max
70

Temperature Range Min
0

Digital I/O Voltage
3.3

Download datasheets and manufacturer documentation for Microchip KSZ8695PI.

The CENTAUR KS8695X, Multi-Port Gateway-on-a-Chip, delivers a high level of networking integration and performance for accelerating broadband gateway development.

Key components integrated in the KS8695X include: Integrated Layer 2 managed switch with five Fast Ethernet transceivers and patented mixed-signal low power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address look-up engine, an on-chip frame buffer memory, and LED controls. One port is partitioned for WAN interface with the other four ports for LAN access. Also integrated is a 166MHz ARM™ (ARM992T) processor with memory management unit (MMU) and 8KB I-cache and 8KB dCache. Shared programmable 8/16/32-bit data bus and 22-bit address bus with up to 64MB total memory space for SDRAM, ROM, Flash, SRAM, and all peripheral devices. Other peripheral support logic including GPIO, a watchdog timer, an interrupt controller, and a JTAG debugging interface. Complete hardware and software reference designs are available. The KS8695X represents a total solution optimized for broadband gateway system development and renders speedy routing performance and connectivity interfaces for value-added networking expansions.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

ARM922T High-Performance CPU Core

XceleRouter™ Technology

Integrated Ethernet Transceivers and Switch Engine

Memory and External I/O Interfaces

WAN and LAN DMA Engines and FIFO

Memory and External I/O Interfaces

Peripheral Support

Power Management

System Design

Reference HW/SW Evaluation Kit

Commercial Temperature Range: 0°C to +70°C

Available in 208-Pin PQFP

User Guide
