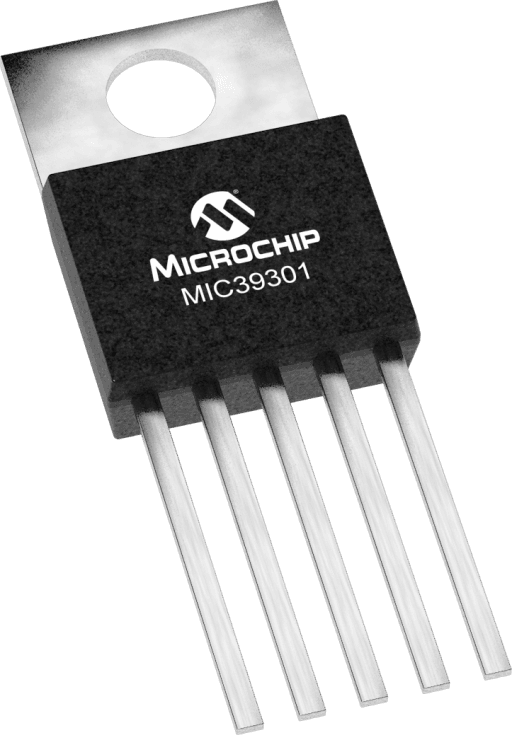

Microchip MIC39301-2.5WT

Manufacturer No:

MIC39301-2.5WT

Manufacturer:

Microchip

Package:

TO-220-5

Description:

3.0A 1.0% Fixed Voltage LDO + Flag + Shutdown

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC39301-2.5WT information

Microchip MIC39301-2.5WT technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC39301-2.5WT.

Type
Parameter

VIN Min (V) V (volt)
2.25

VIN Max V (volt)
16

VOUT V (volt)
1.8, 2.5

IOUT #1 Max mA (milliampere)
3000

Rated IOUT Max mA (milliampere)
3000

Voltage Drop Typ (mV)
385

Accuracy (+/-) %
2

Adjustable VOUT
No

Reverse Battery
Yes

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
Yes

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC39301-2.5WT.

Data Sheets:

b8d7ebbdcef02565b325f9803809c87a.pdf

The MIC39300, MIC39301, and MIC39302 are 3.0A low-dropout linear voltage regulators that provide a low voltage, high-current output with a minimum of external components. Utilizing proprietary Super βeta PNP^® pass element, the MIC39300/1/2 offers extremely low dropout (typically 385mV at 3.0A) and low ground current (typically 36mA at 3.0A).

The MIC39300/1/2 is ideal for PC add-in cards that need to convert from standard 3.3V to 2.5V, or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC39300/1/2 to provide 2.5V from a supply as low as 3V, and 1.8V from a supply as low as 2.5V. The MIC39300/1/2 also has fast transient response for heavy switching applications. The device requires only 47µF of output capacitance to maintain stability and achieve fast transient response.

The MIC39300/1/2 is fully protected with overcurrent limiting, thermal shutdown, reverse battery protection, reverse leakage protection, and reverse lead insertion. The MIC39301 offers a TTL logic-compatible enable pin and an error flag that indicates under voltage and over current conditions. Offered in fixed voltages, the MIC39300/1 comes in the TO-220 and TO-263 (D²Pak) packages and is an ideal upgrade to older, NPN-based linear voltage regulators. The MIC39302 adjustable option allows programming the output voltage anywhere between 1.24V and 15.5V and is offered in a 5-Pin, TO-263 (D²Pak) package.

3.0A minimum guaranteed output current
550mV maximum dropout voltage over temperature
Ideal for 3.0V to 2.5V conversion
Ideal for 2.5V to 1.8V conversion
1% initial accuracy
Low ground current
Current limiting and thermal shutdown
Reverse battery protection
Reverse leakage protection
Fast transient response
TO-263 (D2Pak) and TO-220 packaging
TTL/CMOS compatible enable pin (MIC39301/2 only)
Error flag output (MIC39301 only)
Adjustable output (MIC39302 only)
