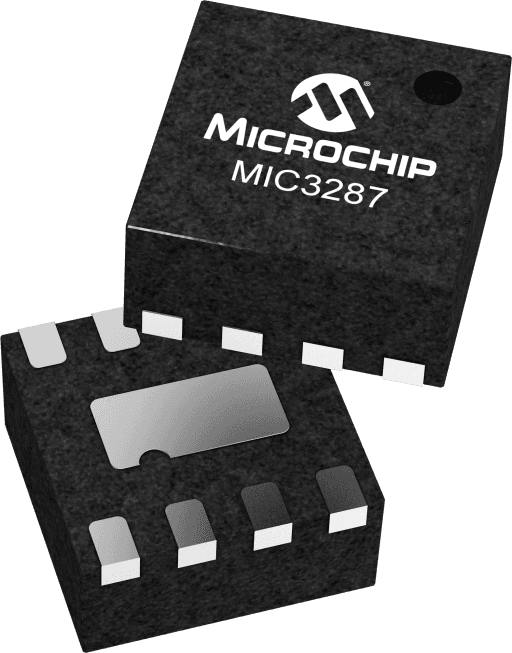

Microchip MIC3287-24YML-TR
Manufacturer No:
MIC3287-24YML-TR
Manufacturer:
Package:
8-VFDFN Exposed Pad, 8-MLF®
Description:
2x2mm White LED Driver w/ 24V OVP
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC3287-24YML-TR Information
Microchip MIC3287-24YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC3287-24YML-TR.
- Type
- Parameter
- Topology
- Boost
- +Vin min (V)
- 2.8
- +Vin max (V)
- 6.5
- Output Current
- 1A BJT
- Dimming
- PWM / Analog
- Package
- TSOT, VDFN
- Product Type
- LED Backlight
- VOUT
- 36
- llim Typ (A)
- 0.35
- llim Max (A)
- 0
- Type
- Parameter
- lq Typ
- 2.1mA
- Vfb (V)
- 0.25
- Tol Typ %
- ±7.5
- Duty Cycle Max
- 0.9
- Freq (Hz)
- 1.2M
- OVP
- Yes
- VEN (V)
- 1.5
- EN
- Yes
- Soft Start
- Yes
- UVLO Typ (V)
- Yes
Download datasheets and manufacturer documentation for Microchip MIC3287-24YML-TR.
Data Sheets:
The MIC3287 is a 1.2MHz pulse-width modulated (PWM) step-up switching regulator that is optimized for constant current white LED driving applications. With a maximum output voltage of 24V and a switch current of over 350mA, the MIC3287 drives a string of up to four white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors.
The MIC3287 implements a constant frequency 1.2MHz PWM current-mode control scheme. The high frequency PWM operation saves board space by reducing external component sizes. The added benefit of the constant frequency PWM control scheme as opposed to variable frequency control schemes is much lower noise and input ripple injected back to the battery source. To optimize efficiency, the feedback voltage is set to only 250mV. The MIC3287 is also available with a maximum 24V over voltage protection.
The MIC3287 is available in low profile Thin SOT-23 5-pin and Thin SOT-23 6-pin packages. The MIC3287 has a junction temperature range of -40°C to +125°C.
- 2.8V to 6.5V input voltage
- 350mA switch current
- 1.2MHz PWM operation
- 250mV feedback voltage
- Optional 24V output over voltage protection (OVP)
- <1% line and load regulation
- <1µA shutdown current
- Over-temperature protection
- Under voltage lockout (UVLO)
- Low profile Thin SOT-23-5 package option
- Low profile Thin SOT-23-6 package option
- 8-pin 2mm x 2mm MLF®package option
- -40°C to +125°C junction temperature range
