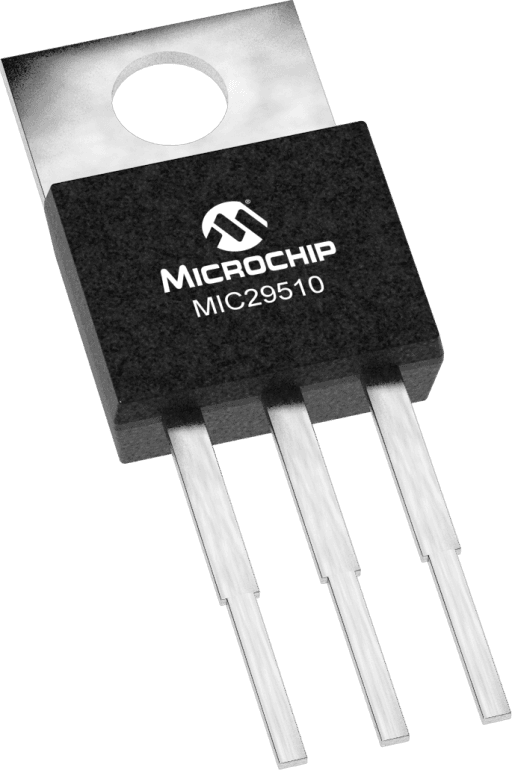

Microchip MIC29510-3.3WT
Microchip MIC29510-3.3WT

Microchip MIC29510-3.3WT

Manufacturer No:

MIC29510-3.3WT

Manufacturer:

Microchip

Package:

TO-220-3

Description:

5.0A LDO Fixed Voltage

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC29510-3.3WT information

Microchip MIC29510-3.3WT technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC29510-3.3WT.

  • Type
  • Parameter
  • VIN Min (V) V (volt)
  • 2.3
  • VIN Max V (volt)
  • 16
  • VOUT V (volt)
  • 3.3, 5.0
  • IOUT #1 Max mA (milliampere)
  • 5000
  • Rated IOUT Max mA (milliampere)
  • 5000
  • Voltage Drop Typ (mV)
  • 700
  • Accuracy (+/-) %
  • 2
  • Adjustable VOUT
  • No
  • Reverse Battery
  • Yes
  • Bypass Pin
  • No
  • Current Limit
  • Yes
  • Shutdown EN
  • No
  • Power Good Signal
  • No
  • Thermal Shutdown
  • Yes

Download datasheets and manufacturer documentation for Microchip MIC29510-3.3WT.

Application Notes:

Data Sheets:

The MIC29510 and MIC29512 are high-current, high-accuracy, low-dropout voltage regulators featuring fast transient recovery from input voltage surges and output load current changes. These regulators use a PNP pass element that features proprietary Super βeta PNP® process.

The MIC29510/2 is available in two versions: the 3-pin fixed output MIC29510 and the 5-pin adjustable output voltage MIC29512. All versions are fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, over-temperature operation, and positive and negative transient voltage spikes.

A TTL-compatible enable (EN) control pin supports external on/off control. If on/off control is not required, the device may be continuously enabled by connecting EN to IN.

The MIC29510/2 is available in the standard 3- and 5-pin TO-220 package with an operating junction temperature range of 0°C to +125°C.

For applications requiring even lower dropout voltage, input voltage greater than 16V, or an error flag, see the MIC29500/29501/29502/29503



  • Fast transient response
  • 5A current capability
  • 700mV dropout voltage at full load
  • Low ground current
  • Accurate 1% guaranteed tolerance
  • Zero current shutdown mode (MIC29512)
  • Fixed voltage and adjustable versions
