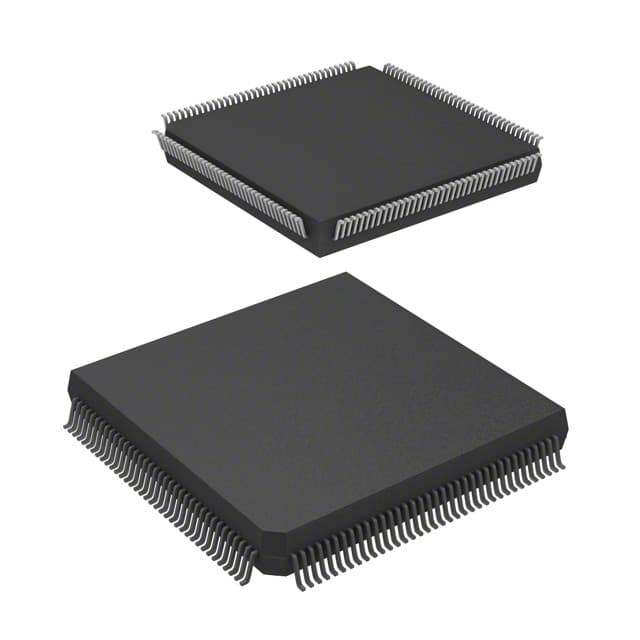

Renesas R5F61668RN50FPV

Manufacturer No:

R5F61668RN50FPV

Manufacturer:

Renesas

Package:

144-LQFP

Description:

1MB 1M x 8 FLASH H8SX 32-Bit Microcontroller H8® H8SX/1600 Series R5F61668 144 Pin 50MHz 3.3V 144-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

R5F61668RN50FPV information

Renesas R5F61668RN50FPV technical specifications, attributes, parameters and parts with similar specifications to Renesas R5F61668RN50FPV.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
144-LQFP

Number of Pins
144

Operating Temperature
-20°C~75°C TA

Packaging
Tray

Series
H8® H8SX/1600

Published
2008

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
144

Terminal Finish
Tin/Bismuth (Sn/Bi)

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
50MHz

Time@Peak Reflow Temperature-Max (s)
20

Base Part Number
R5F61668

Operating Supply Voltage
3.6V

Interface
EBI/EMI, I2C, IrDA, SCI, USB

Memory Size
1MB

Oscillator Type
External

Number of I/O
92

RAM Size
56K x 8

Voltage - Supply (Vcc/Vdd)
3V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
H8SX

Peripherals
DMA, LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
1MB 1M x 8

Connectivity
EBI/EMI, I2C, IrDA, SCI, SmartCard, USB

Bit Size
32

Data Converter
A/D 8x10b; D/A 2x8b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
3

Address Bus Width
24

Download datasheets and manufacturer documentation for Renesas R5F61668RN50FPV.

Datasheets:

renesas-r5f61668rn50fpv-datasheets-2110.pdf

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

R5F61668RN50FPV Overview

A 144-LQFP package is included. In total, it has 92 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -20°C~75°C TA. H8® H8SX/1600 series components belong to this electrical component. Its program memory size is 1MB 1M x 8. There is a H8SX Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 144 terminations in total. The part works on a 32-bit basis. An output voltage of 3.3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 1MB memory size belongs to the part. R5F61668 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 50MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 144 pins that are accessible. A total of 3 timers/counters are included in the package. A total of 144 pins are present.

R5F61668RN50FPV Features

144-LQFP package
Mounting type of Surface Mount

R5F61668RN50FPV Applications

There are a lot of Renesas Electronics America
R5F61668RN50FPV Microcontroller applications.

Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
