Microchip MIC26400YJL-TR
Microchip MIC26400YJL-TR

Microchip MIC26400YJL-TR

Manufacturer No:

MIC26400YJL-TR

Manufacturer:

Microchip

Package:

28-PowerVQFN

Description:

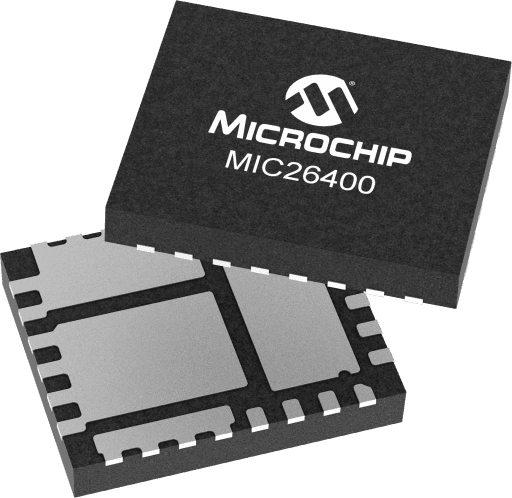

26VIN/5A DC-DC Buck Regulator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC26400YJL-TR information

Microchip MIC26400YJL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC26400YJL-TR.

  • Type
  • Parameter
  • Max Duty Cycle (%)
  • 87.0
  • Input Voltage Range Max V (volt)
  • 26
  • Input Voltage Range Min V (volt)
  • 4.5
  • # of Outputs
  • 1
  • Output Current
  • 5000
  • Driver Type
  • Buck
  • Quiescent Current µA (microampere)
  • 1.4
  • Synchronous Rectifier
  • Yes
  • Temp Range Max °C (degrees Celsius)
  • 125
  • Temp Range Min °C (degrees Celsius)
  • -40
  • VOUT Max V (volt)
  • 5.5
  • VFB V (volt)
  • 0.8
  • VOUT Min V (volt)
  • 0.8
  • Vref (V)
  • 0

Download datasheets and manufacturer documentation for Microchip MIC26400YJL-TR.

Data Sheets:

Application Notes:

The MIC26400 is a constant-frequency, synchronous buck regulator featuring a unique digitally modified adaptive ON-time control architecture. The MIC26400 operates over an input supply range of 4.5V to 26V and provides a regulated output at up to 5A of output current. The output voltage is adjustable down to 0.8V with a typical accuracy of ±1%, and the device operates at a switching frequency of 300kHz.

Hyper Speed Control™ architecture allows for ultra-fast transient response while reducing the output capacitance and also makes (High VIN)/(Low VOUT) operation possible. This digitally modified adaptive tON ripple control architecture combines the advantages of fixed frequency operation and fast transient response in a single device.

The MIC26400 offers a full suite of protection features to ensure protection of the IC during fault conditions. These include undervoltage lockout to ensure proper operation under power-sag conditions, internal soft-start to reduce inrush current, foldback current limit, "hiccup" mode short-circuit protection and thermal shutdown.



    • Hyper Speed Control™ architecture enables
    • High delta V operation (VIN = 26V and VOUT = 0.8V)
    • Small output capacitance
    • 4.5V to 26V input voltage
    • Adjustable output from 0.8V to 5.5V (±1% accuracy)
    • Any Capacitor™ Stable
    • Zero ESR to high-ESR output capacitance
    • 5A output current capability
    • 300kHz switching frequency
    • Internal compensation
    • Up to 95% efficiency
    • 6ms Internal soft-start
    • Foldback current limit and "hiccup" mode short-circuit protection
    • Thermal shutdown
    • Supports safe start-up into a pre-biased load
    • -40°C to +125°C junction temperature range

User Guide
