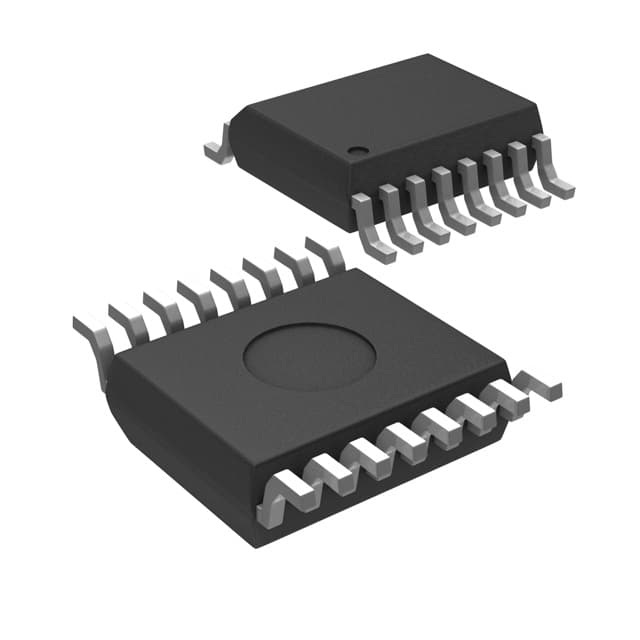

Microchip MIC2583-JYQS

Manufacturer No:

MIC2583-JYQS

Manufacturer:

Microchip

Package:

16-SSOP (0.154, 3.90mm Width)

Description:

Single-Channel Hot-Swap Controller - 200mV Fast-Trip Threshold

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2583-JYQS information

Microchip MIC2583-JYQS technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2583-JYQS.

Type
Parameter

Product type
Low Voltage (\u003c16V)

Latch off
Yes

/FAULT
Yes

/POR
Yes

# of PWRGD
1 Active High

Oja (C/W)
112

Download datasheets and manufacturer documentation for Microchip MIC2583-JYQS.

Application Notes:

55369d38ee07c8113946dcca4ff095a6.pdf

ff35b65cb6cdd4d9c40ad675207afb27.pdf

Data Sheets:

620dbceb2e369f4891f3ae1740e1f0df.pdf

The MIC2582 and MIC2583 are single-channel positive voltage hot swap controllers designed to allow the safe insertion of boards into live system backplanes. The MIC2582 and MIC2583 are available in 8-pin SOIC and 16-pin QSOP packages, respectively. Using a few external components and by controlling the gate drive of an external N-Channel MOSFET device, the MIC2582/83 provide inrush current limiting and output voltage slew rate control in harsh, critical power supply environments. Additionally, a circuit breaker function will latch the output MOSFET off if the current-limit threshold is exceeded for a determined period. The MIC2583R option includes an auto-restart function upon detecting an over current condition.

MIC2582: Pin-for-pin functional equivalent to the LTC1422
2.3V to 13.2V supply voltage operation
Surge voltage protection up to 20V
Current regulation limits inrush current regardless of load capacitance
Programmable inrush current limiting
Electronic circuit breaker
Optional dual-level overcurrent threshold detects excessive load faults
Fast response to short-circuit conditions (<1µs)
Programmable output undervoltage detection
Undervoltage Lockout (UVLO) protection
Auto-restart function (MIC2583R)
Power-on-Reset status output
Power good (PG) status output (MIC2583 and MIC2583R)
/FAULT status output (MIC2583 and MIC2583R)
