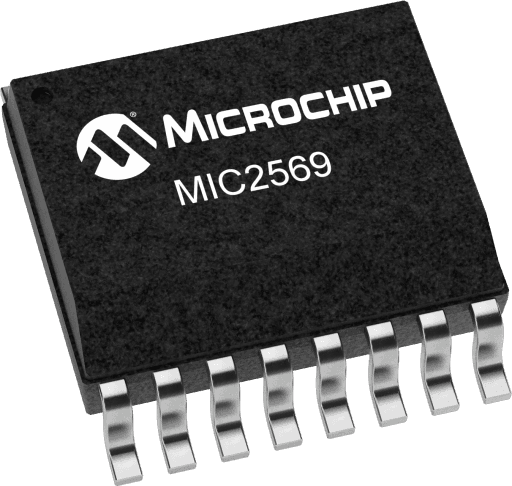

Microchip MIC2569YQS-TR

Manufacturer No:

MIC2569YQS-TR

Manufacturer:

Microchip

Package:

16-SSOP (0.154, 3.90mm Width)

Description:

CableCARD, 2.0 Power Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2569YQS-TR information

Microchip MIC2569YQS-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2569YQS-TR.

Type
Parameter

Driver Type
PC Card/PCMCIA/CardBus Power Distribution Switches

Current Limited
Yes

Oja (C/W)
100.8

Thermal Shutdown
Yes

Slots Supported
1-CableCard

VCC3 On-Resistance (mO)
90

VPP On-Resistance (mO)
275

Charge Pump(1)
Yes

Download datasheets and manufacturer documentation for Microchip MIC2569YQS-TR.

Application Notes:

55369d38ee07c8113946dcca4ff095a6.pdf

ff35b65cb6cdd4d9c40ad675207afb27.pdf

Data Sheets:

37b06195a955932ff3a40a61c19477e2.pdf

MIC2569 is designed to supply power to OpenCable™ systems and CableCARD™ hosts. These CableCARDs are also known as Point of Distribution (POD) cards. MIC2569 supports both Single and Multiple stream cards through a simple to control parallel interface. All voltage switching is soft-start at turn-on, and break-before-make when changing between different voltage supplies. Built in current limiting protects all VCC and VPP output lines of the host system from card faults and accidental short circuits. MIC2569 provides a FAULT/ signal to indicate an over-current or fault condition exists and is equipped with internal thermal monitoring circuitry to protect the device itself in the event of a sustained over-current condition. MIC2569 is offered in a space saving 16 pin QSOP packaging.

110 mO maximum VCC on resistance
400 mO maximum VPP on resistance
3.0V to 3.6V for the 3.3VIN operating range
3.0V to 5.5V for the 5VIN operating range
1.3A minimum VCC current limit
150mA minimum VPP current limit (150mA each)
Compact 16-pin QSOP packaging
Operating temperatures from -40°C to +85°C
Low quiescent current
Soft start turn-on
Break-before-make voltage switching
Short-circuit protection with thermal shutdown
Input under voltage lock-out (UVLO)
ESD protection
No external components required
