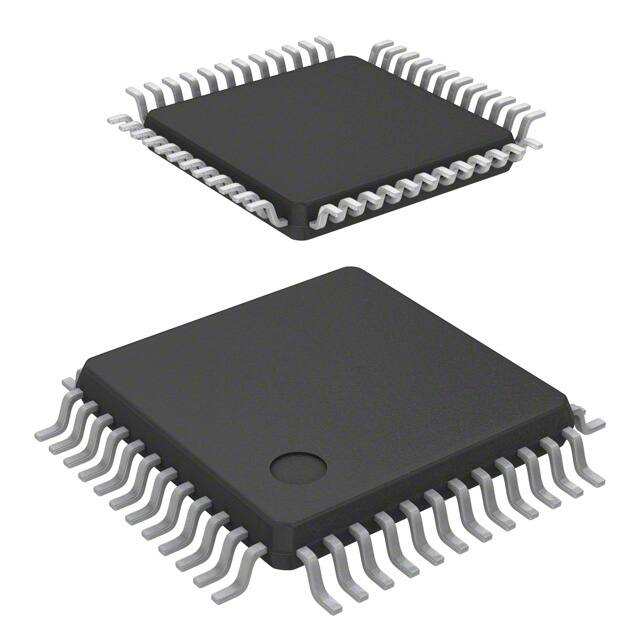

Microchip MIC2342-2YTQ
Microchip MIC2342-2YTQ

Microchip MIC2342-2YTQ

Manufacturer No:

MIC2342-2YTQ

Manufacturer:

Microchip

Package:

48-TQFP

Description:

Tray Active 6 Surface Mount Hot Swap Controllers Latched Fault, Thermal Limit, UVLO 48-TQFP 6 PCI Express® Hot Plug Controller

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2342-2YTQ information

Microchip MIC2342-2YTQ technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2342-2YTQ.

  • Type
  • Parameter
  • Factory Lead Time
  • 5 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 48-TQFP
  • Number of Pins
  • 48
  • Operating Temperature
  • 0°C~70°C
  • Packaging
  • Tray
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Feature
  • Latched Fault, Thermal Limit, UVLO
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 48
  • ECCN Code
  • EAR99
  • Type
  • Hot Plug Controller
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Applications
  • PCI Express®
  • Additional Feature
  • IT ALSO OPERATE ON 12V SUPPLY
  • HTS Code
  • 8542.39.00.01
  • Voltage - Supply
  • 3V~3.6V 11V~13V
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 2
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • MIC2342
  • Supply Voltage-Min (Vsup)
  • 3V
  • Number of Channels
  • 6
  • Adjustable Threshold
  • YES
  • Internal Switch(s)
  • Both
  • Programmable Features
  • Circuit Breaker, Current Limit, Fault Timeout, Slew Rate
  • Length
  • 7mm
  • Height Seated (Max)
  • 1.2mm
  • Width
  • 7mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Microchip MIC2342-2YTQ.

Datasheets:

PCN Assembly/Origin:

PCN Packaging:

ConflictMineralStatement:

MIC2342-2YTQ Overview


It's included in the 48-TQFP package.Currently, there are 6 channels accessible.It's packaged in the form of a Tray.Hot-swappable device has a total of 48 terminations.The terminal position of the device is QUAD.With a supply voltage of 3.3V, high efficiency is possible.It's set up in the way of Surface Mount.Hot Plug Controller is the classification for this electrical component.The temperature should be set to 0°C~70°C to ensure reliable functioning.The device has PCI Express® applicationsHot-swappable device is featured in Latched Fault, Thermal Limit, UVLO.Hot-swappable device should be able to work wHot-swappable deviceh a power source of 3V~3.6V 11V~13VV.Hot-swappable device belongs to the MIC2342 family of numbers.For operation, 48 pins are used.Its programmable features are Circuit Breaker, Current Limit, Fault Timeout, Slew Rate.Hot-swappable device is posHot-swappable deviceioned in the direction of Surface Mount.The supply voltage (Vsup) should be kept above 3V for normal operation.IT ALSO OPERATE ON 12V SUPPLY can also be produced by using this device.

MIC2342-2YTQ Features


Features of Latched Fault, Thermal Limit, UVLO
Programmable features of Circuit Breaker, Current Limit, Fault Timeout, Slew Rate


MIC2342-2YTQ Applications


There are a lot of Microchip Technology
MIC2342-2YTQ hot swap controllers applications.


  • Servers
  • Network switches
  • Networking
  • Telecommunications
  • Industrial
  • Datacom
  • Electric vehicle
  • Avionics systems
  • Safe board insertion and extraction
  • Industrial computers and servers
