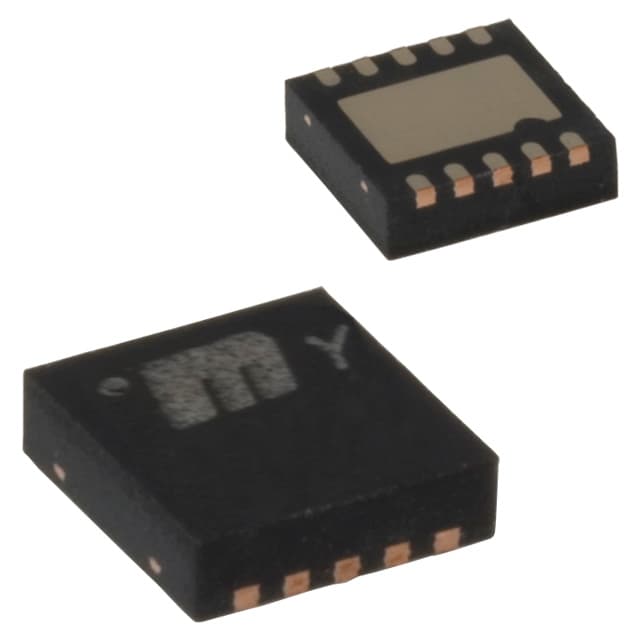

Microchip MIC23201YML-TR
Manufacturer No:
MIC23201YML-TR
Manufacturer:
Package:
10-VFQFN Exposed Pad, 10-MLF®
Description:
2MHz PWM 2A Buck Regulator with HSC
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC23201YML-TR Information
Microchip MIC23201YML-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC23201YML-TR.
- Type
- Parameter
- Max Duty Cycle (%)
- 80
- Input Voltage Range Max V (volt)
- 5.5
- Input Voltage Range Min V (volt)
- 2.7
- # of Outputs
- 1
- Output Current
- 2000
- Driver Type
- Step Down (Buck)
- Quiescent Current µA (microampere)
- 1.15
- Synchronous Rectifier
- Yes
- Temp Range Max
- 125
- Temp Range Min
- -40
- Type
- Parameter
- VOUT Max V (volt)
- 3.6
- Vfb (V)
- 0.62
- VOUT Min V (volt)
- 0.62
- Vref (V)
- 0
- Target Processor
- SAM9x6
Download datasheets and manufacturer documentation for Microchip MIC23201YML-TR.
Data Sheets:
Application Notes:
Supporting Collateral:
The MIC23201 is a high efficiency 2MHz 2A synchronous buck regulator with Hyper Speed Control. Hyper Speed Control™ provides ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.
The MIC23201 is designed for use with a very small inductor, down to 1µH, and an output capacitor as small as 22µF that enables a total solution size, less than 1.5mm height.
The MIC23201 provides a constant switching frequency around 2MHz while achieving peak efficiencies up to 90%.
Also, checkout MPU power solutions with MIC23201. Go to Treelinktool under DC/DC converters and MPU Power for further information.
- Input voltage: 2.7V to 5.5V
- 2A output current
- Up to 90% peak efficiency
- Programmable Soft-Start
- Power Good Indicator
- 2MHz switching frequency
- Safe for pre-biased output
- Ultra fast transient response
- Low voltage output ripple, 16mV at full load
- Fully integrated MOSFET switches
- 0.01µA shutdown current
- Thermal shutdown and current limit protection
- Output Voltage as low as 0.9
- -40°C to +125°C junction temperature range
