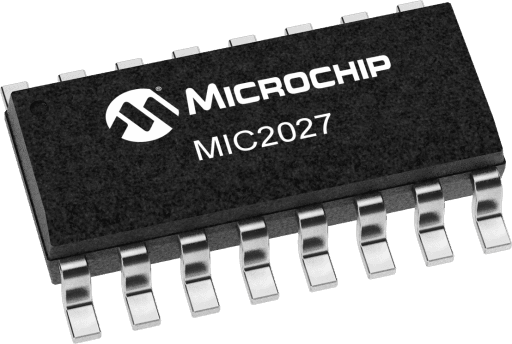

Microchip MIC2027-2YWM-TR

Manufacturer No:

MIC2027-2YWM-TR

Manufacturer:

Microchip

Package:

16-SOIC (0.295, 7.50mm Width)

Description:

Quad USB High-Side Power Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2027-2YWM-TR information

Microchip MIC2027-2YWM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2027-2YWM-TR.

Type
Parameter

Driver Type
USB Power Dist

Type
Quad

Vin Min (V)
2.7

Vin Max (V)
5.5

Current Limit Fixed (Min)
500mA

Current Limited
Yes

RDS ON @5V (mO)
150

Enable Logic
Active High

Oja (C/W)
112, 120

Rev Block Diode
Yes

UVLO
Yes

Thermal Shutdown
Yes

Fault Flag
Yes

Flag Transient Filter
Yes

UL Approved
Yes

Switch Element
N-Ch

Download datasheets and manufacturer documentation for Microchip MIC2027-2YWM-TR.

Data Sheets:

9695c231f3d3402a202b66d52d08d382.pdf

The MIC2027 and MIC2077 are quad high-side MOSFET switches optimized for general-purpose power distribution requiring circuit protection. The MIC2027/77 are internally current limited and have thermal shutdown that protects the device and load.

The MIC2077 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. Both devices employ soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is asserted during overcurrent and thermal shutdown conditions. Transient current limit faults are internally filtered. The MIC2027/77 are available in 16-pin narrow (150 mil) and wide (300 mil) SOIC packages.

150mO maximum on-resistance per channel
2.7V to 5.5V operating range
500mA minimum continuous current per channel
Short-circuit protection with thermal shutdown
Thermally isolated channels
Fault status flag with 3ms filter eliminates false assertions
Undervoltage lockout
Reverse current flow blocking (no "body diode")
Circuit breaker mode (MIC2077)
Logic-compatible inputs
Soft-start circuit
Low quiescent current
Pin compatible with MIC2524 and MIC2527
UL recognized
