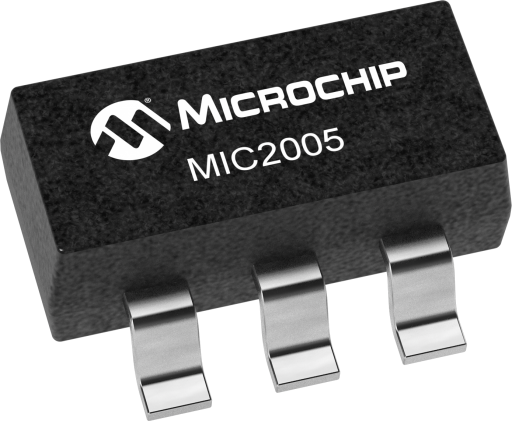

Microchip MIC2005-0.5YM6-TR

Manufacturer No:

MIC2005-0.5YM6-TR

Manufacturer:

Microchip

Package:

SOT-23-6

Description:

Fixed Current Limit Single High-Side Switch + Flag + Cslew, Active Low- 0.5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2005-0.5YM6-TR information

Microchip MIC2005-0.5YM6-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2005-0.5YM6-TR.

Type
Parameter

Driver Type
USB Power Dist

Type
Single

Vin Min (V)
2.5

Vin Max (V)
5.5

Current Limit Fixed (Min)
500mA, 800mA, 1.2A

Current Limited
Yes

RDS ON @5V (mO)
70

Enable Logic
Active High

Oja (C/W)
230, 230, 90

UVLO
Yes

Thermal Shutdown
Yes

Fault Flag
Yes

Flag Transient Filter
Yes

UL Approved
Yes

Switch Element
P-Ch

Download datasheets and manufacturer documentation for Microchip MIC2005-0.5YM6-TR.

Data Sheets:

48ecbe7d3ead38771e393d6b48fd09bf.pdf

MIC20XX family of switches are current limiting, high-side power switches, designed for general purpose power distribution and control in digital televisions (DTV), printers, set top boxes (STB), PCs, PDAs, and other peripheral devices (see Functionality Table and Pin Configuration drawings) MIC20XX family's primary functions are current limiting and power switching. They are thermally protected and will shutdown should their internal temperature reach unsafe levels, protecting both the device and the load, under high current or fault conditions. Features include fault reporting, fault blanking to eliminate noise-induced false alarms, output slew rate limiting, under voltage detection, automatic-on output, and enable pin with choice of either active low or active high enable. The FET is self-contained, with a fixed- or user-adjustable current limit. The MIC20XX family is ideal for any system where current limiting and power control are desired. The MIC201X (3 ≤ x ≤ 9) and MIC2019A switches offer a unique new patented feature: Kickstart™, which allows momentary high-current surges up to the secondary current limit (ILIMIT_2nd) without sacrificing overall system safety. The MIC20XX family is offered, depending on the desired features, in a space-saving 5-pin SOT-23, and 6-pin SOT-23 packages.

170mO typical on-resistance @ 5V
Enable active high or active low
2.5V-5.5V operating range
Pre-set current limit values of 0.5A, 0.8A, and 1.2A*
Adjustable current limit 0.2A to 2.0A* (MIC20X7-MIC20X9)
Adjustable current limit 0.1A to 0.9A* (MIC20X9A)
Undervoltage lock-out (UVLO)
Variable UVLO allows adjustable UVLO thresholds*
Automatic load discharge for capacitive loads*
Soft-start prevents large current inrush
Adjustable slew rate allows custom slew rates*
Automatic-on output after fault
Thermal protection
UL recognized
