HIROSE MDF76GW-30S-1H(55)
HIROSE MDF76GW-30S-1H(55)

HIROSE MDF76GW-30S-1H(55)

Manufacturer No:

MDF76GW-30S-1H(55)

Manufacturer:

HIROSE

Package:

Description:

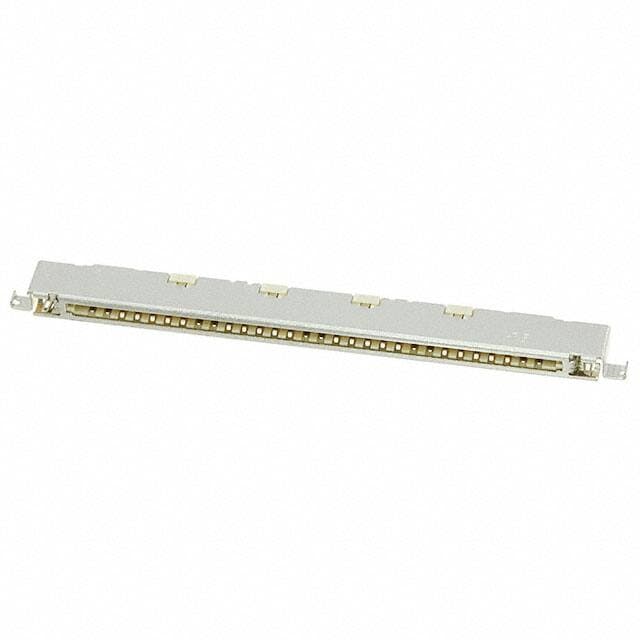

1 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 30 Positions Center Strip Contact

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MDF76GW-30S-1H(55) information

HIROSE MDF76GW-30S-1H(55) technical specifications, attributes, parameters and parts with similar specifications to HIROSE MDF76GW-30S-1H(55).

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Insulation Material
  • Liquid Crystal Polymer (LCP)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • MDF76
  • Published
  • 2017
  • JESD-609 Code
  • e4
  • Feature
  • Solder Retention
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 30
  • Applications
  • General Purpose
  • Number of Rows
  • 1
  • Voltage - Rated
  • 200VAC
  • Additional Feature
  • EMI SHIELDED
  • HTS Code
  • 8536.69.40.40
  • Fastening Type
  • Push-Pull
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Center Strip Contact
  • Mixed Contacts
  • NO
  • Current Rating (Amps)
  • Varies by WireGAuge
  • Total Number of Contacts
  • 30
  • Insulation Height
  • 0.091 2.30mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.039 1.00mm
  • Insulation Color
  • Beige
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 1
  • PCB Contact Pattern
  • RECTANGULAR
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Contact Gender
  • FEMALE
  • UL Flammability Code
  • 94V-0
  • Contact Resistance
  • 40mOhm

Download datasheets and manufacturer documentation for HIROSE MDF76GW-30S-1H(55).

Datasheets:

MDF76GW-30S-1H(55) Overview


Receptacle packaging is included.This device has a mounting type of Surface Mount, Right Angle.We package the product with a Tape & Reel (TR) case.The product is part of the MDF76 Series.Additionally, there are features like EMI SHIELDED, just to name a few.You can use it for General Purpose.This feature makes it more powerful in a number of ways due to its Solder Retention feature.You've got Surface Mount mounted on the part.This device runs at -40°C~85°C operating temperature.

MDF76GW-30S-1H(55) Features


MDF76 series


MDF76GW-30S-1H(55) Applications


There are a lot of Hirose Electric Co Ltd
MDF76GW-30S-1H(55) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology

User Guide
