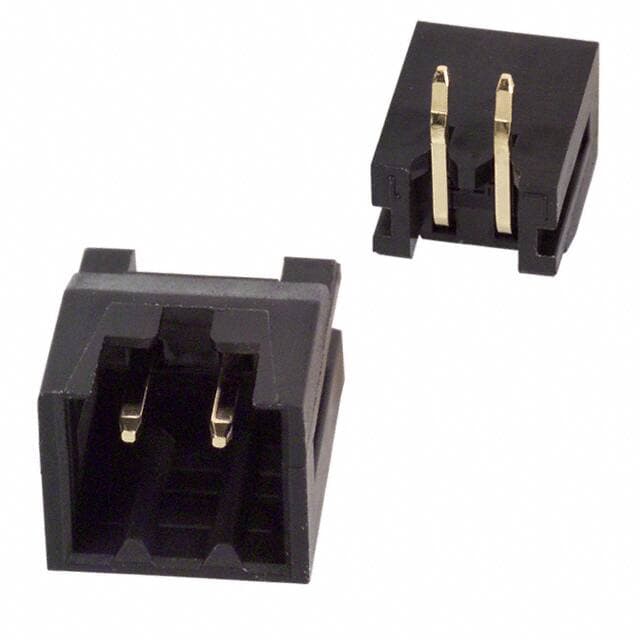

HIROSE DF3-2P-2DS(22)
Manufacturer No:
DF3-2P-2DS(22)
Manufacturer:
Package:
Description:
DF3 Series 1-Row Header Press-Fit, Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA), Nylon 2-Position Board to Board or Cable 0.197 5.00mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
DF3-2P-2DS(22) information
HIROSE DF3-2P-2DS(22) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF3-2P-2DS(22).
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Contact Material
- Brass
- Mount
- Through Hole
- Mounting Type
- Through Hole, Right Angle
- Contact Shape
- Square
- Insulation Material
- Polyamide (PA), Nylon
- Operating Temperature
- -55°C~105°C
- Packaging
- Bulk
- Series
- DF3
- Published
- 2008
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Press-Fit, Solder
- ECCN Code
- EAR99
- Connector Type
- Header
- Number of Positions
- 2
- Number of Rows
- 1
- Voltage - Rated
- 100V
- HTS Code
- 8536.69.40.40
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- Gold
- Contact Type
- Male Pin
- Insulation Height
- 0.197 5.00mm
- Style
- Board to Board or Cable
- Reach Compliance Code
- unknown
- Current Rating
- 3A
- Pitch - Mating
- 0.079 2.00mm
- Insulation Color
- Black
- Number of Conductors
- ONE
- Reference Standard
- UL, CSA
- Reliability
- COMMERCIAL
- Contact Length - Post
- 0.114 2.90mm
- Shrouding
- Shrouded - 4 Wall
- Number Of PCB Rows
- 1
- Contact Length - Mating
- 0.122 3.10mm
- PCB Contact Pattern
- RECTANGULAR
- Contact Gender
- Male
- Rated Current (Signal)
- 3A
- Contact Resistance
- 30mOhm
- Mating Contact Pitch
- 0.079 inch
- Polarization Key
- POLARIZED HOUSING
- Dielectric Withstanding Voltage
- 650VAC V
- Insertion Force-Max
- 4.448 N
- Material Flammability Rating
- UL94 V-0
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for HIROSE DF3-2P-2DS(22).
DF3-2P-2DS(22) Description
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information. All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF3-2P-2DS(22) Features
Low profile design with the mounting height of 6.8mm
(Achieves the multi-harness by the full automatic ID machine in combination with the DF11 series ID type.
DF11 series represents the 2mm pitch single-row product.Please refer to page B220 to B233.)
Crimp Socket (1) Low profile design with mounting height 7.5mm.
Provide the contact crimping area with the sufficient space, and secures the stable crimping operation.
The board can be connected horizontally or vertically in combination with the straight header with the right angle header.
DF3-2P-2DS(22) Applications
Temperature Measurement
Pressure Measurement
Flow Meters
Factory Automation and Process Control
