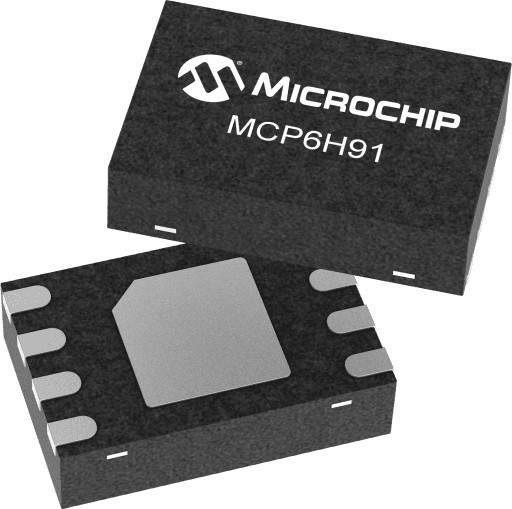

Microchip MCP6H91-E/SN

Manufacturer No:

MCP6H91-E/SN

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

10 MHz 12V opamp

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP6H91-E/SN information

Microchip MCP6H91-E/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP6H91-E/SN.

Type
Parameter

CMRR Min (dB)
98

Enhanced EMI Protection
No

Gain Bandwidth Product kHz (kilohertz)
10000

Iq Max (uA)
2800

Input Voltage Noise Density (nV/rt(Hz))
23

Iq Typical (µA)
2000

Operating Voltage Max V (volt)
12

Operating Voltage Min V (volt)
3.5

PM (deg)
60

PSRR Min (dB)
94

# Per Package
1

Slew Rate (V/µs)
10

Vos Max µV (microvolt)
4000

Download datasheets and manufacturer documentation for Microchip MCP6H91-E/SN.

The MCP6H91 operational amplifier (op amp) has a wide supply voltage range of 3.5V to 12V and rail-to-rail output operation. This device is unity gain stable and has a gain bandwidth product of 10 MHz (typical). This device operates with a single-supply voltage as high as 12V, while only drawing 2.2 mA/amplifier (typical) of quiescent current. The MCP6H91 is fully specified in extended temperature range from -40°C to +125°C and is available in 8L-SOIC and 8L- 2x3 TDFN

GBWP of 10 MHz (typ.)
Single Supply: 3.5V to 12V
Dual Supply: ±1.75V to ±6V
Low voltage offset, 4 mV (max.)
Low quiescent current, 2 mA (max.)
Extended temp. range, -40°C to +125°C
Available in single, dual and quad
