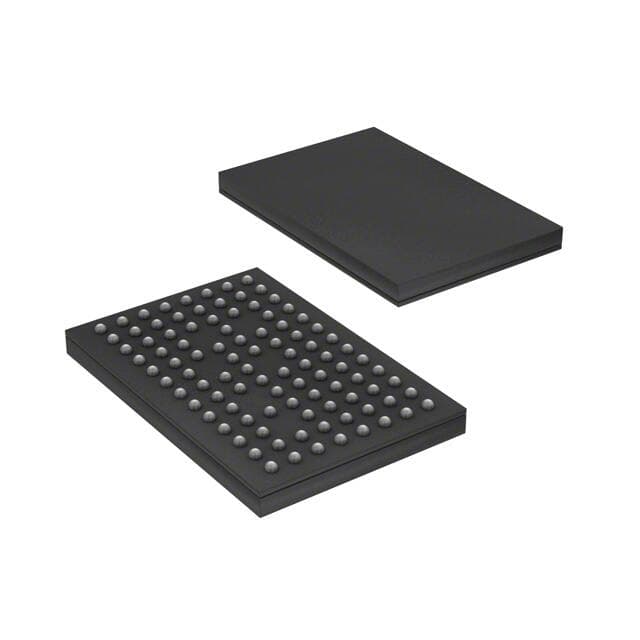

TI TPS6591104EA2ZRCR

Manufacturer No:

TPS6591104EA2ZRCR

Manufacturer:

Package:

98-VFBGA

Description:

98 Terminations 2.7V~5.5V 98 Pin TPS6591104 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS6591104EA2ZRCR information

TI TPS6591104EA2ZRCR technical specifications, attributes, parameters and parts with similar specifications to TI TPS6591104EA2ZRCR.

Type
Parameter

Lifecycle Status
LIFEBUY (Last Updated: 3 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
98-VFBGA

Number of Pins
98

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
98

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Applications
Portable Equipment

Additional Feature
ALSO OPER FROM SUP VOL 1.7 TO 5.5 V AND 1.4 TO 3.6 V; THRESHOLD VOL ARE 3.5V, 3.45V, 2.55V AND 2.5V

HTS Code
8542.39.00.01

Voltage - Supply
2.7V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.8V

Terminal Pitch
0.65mm

Base Part Number
TPS6591104

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2.7V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Adjustable Threshold
YES

Supply Current-Max (Isup)
0.5mA

Switching Frequency-Max
3000kHz

Height
1mm

Length
9mm

Width
6mm

Thickness
740?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TPS6591104EA2ZRCR.

PCN Obsolescence/ EOL:

texasinstruments-sn74lvc573azqnr-pcnobsolescenceeol-9409.pdf

TPS6591104EA2ZRCR Overview

It is acceptable to ship using the method Tape & Reel (TR) .It is packaged the power management in 98-VFBGA for ease of transportation.For easy adaptation, Surface Mount is a universal mounting method.It is intended to be used at Portable Equipment as well as for other applications.Ideally, the operating temperature of the power management ic should be set to -40°C~85°C to avoid any malfunctions.For its operation, the power management uses 2.7V~5.5V voltage.You can search TPS6591104 if you are looking for more power ic's pin-to-pin solutions.The power managment ic has 98 terminals.The IC has been praised a lot for its capability of being a POWER SUPPLY MANAGEMENT CIRCUIT analog instruments designs.The power managment ic is programmed with 98 pins.It is equipped with a Surface Mount that facilitates mounting on a PCB or other board.It is capable of handling a variety of demanding tasks when powered by 3.8V voltage.In order for the ic supplies to begin working, it must have at least 2.7V .It is necessary for 1 channels to work together in order for the output quality to be maintained.If the power supply ic's voltage is higher than 5.5V , you shouldn't feed it.When utilizing this integrated power supplies, ALSO OPER FROM SUP VOL 1.7 TO 5.5 V AND 1.4 TO 3.6 V; THRESHOLD VOL ARE 3.5V, 3.45V, 2.55V AND 2.5V can also be discovered.

TPS6591104EA2ZRCR Features

Mainly used in Portable Equipment applications
Operating temperature: -40°C~85°C
POWER SUPPLY MANAGEMENT CIRCUIT analog IC
ALSO OPER FROM SUP VOL 1.7 TO 5.5 V AND 1.4 TO 3.6 V; THRESHOLD VOL ARE 3.5V, 3.45V, 2.55V AND 2.5V
