Manufacturer No:

MCP39F501T-E/MQ

Manufacturer:

Microchip

Package:

28-VFQFN Exposed Pad

Description:

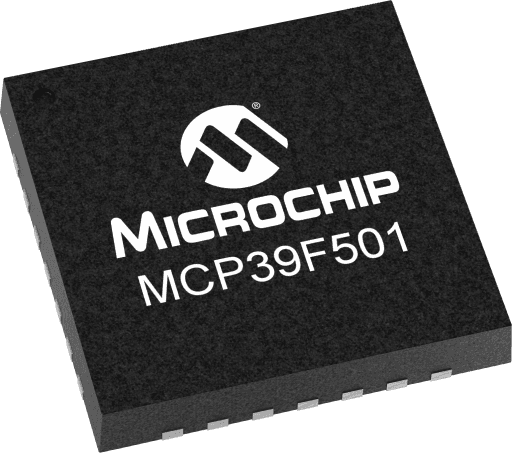

Single-phase power-monitoring IC designed for real-time measurement of input power for AC/DC power supplies, power meters, and IoT applications.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP39F501T-E/MQ information

Microchip MCP39F501T-E/MQ technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP39F501T-E/MQ.

  • Type
  • Parameter
  • Resolution
  • 24
  • Sample Rate kSPS Max
  • 0.0125
  • Input Channels Differential
  • 2
  • SNR typ
  • 95
  • SFDRTyp
  • 111
  • ENOB
  • 15.4
  • INL Typ LSB
  • 1

Download datasheets and manufacturer documentation for Microchip MCP39F501T-E/MQ.

Data Sheets:

User Guide:

Errata:

Brochures:

The MCP39F501 is a highly integrated, single-phase power-monitoring IC designed for real-time measurement of input power for AC/DC power supplies, power distribution units and industrial applications. It includes dual-channel delta sigma ADCs, a 16-bit calculation engine, EEPROM and a flexible 2-wire interface. An integrated low-drift voltage reference addition to 94.5 dB of SINAD performance on each measurement channel allows for better than 0.1% accurate designs across a 4000:1 dynamic range.

  • Power Monitoring Accuracy capable of 0.1% error across 4000:1 dynamic range
  • Fast Calibration Routines
  • Programmable Event Notifications such as overcurrent and voltage sag, surge protection
  • 512 bytes User-accessible EEPROM through page read/write commands
  • Non-volatile On-chip Memory, no external memory required
  • Built-in calculations on fast 16-bit processing core- Active, Reactive and Apparent Power- True RMS Current, RMS Voltage- Line Frequency, Power Factor
  • Two-Wire Serial Protocol using a 2-wire UART interface supporting multiple devices on a single bus.
  • Low-Drift Internal Voltage Reference, 10 ppm/°C typical
  • 28-lead 5x5 QFN package
  • Extended Temperature Range -40°C to +125°C
  • AEC-Q100 Grade 1
