Microchip MCP2562FDT-H/MF
Microchip MCP2562FDT-H/MFMicrochip MCP2562FDT-H/MFMicrochip MCP2562FDT-H/MF

Microchip MCP2562FDT-H/MF

Manufacturer No:

MCP2562FDT-H/MF

Manufacturer:

Microchip

Package:

8-VDFN Exposed Pad

Description:

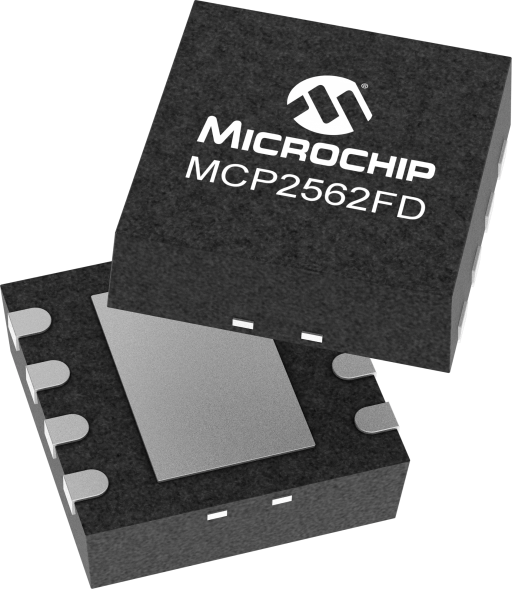

CAN Flexible Data Rate Transceiver

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP2562FDT-H/MF information

Microchip MCP2562FDT-H/MF technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2562FDT-H/MF.

  • Type
  • Parameter
  • CAN FD
  • Yes
  • Bitrate Max [MBits/s]
  • 8
  • Operating Temperature Max. (C)
  • 150
  • Operating Temperature Min. (C)
  • -40
  • Operating Voltage Max. (V)
  • 5.5
  • Operating Voltage Min. (V)
  • 4.5

Download datasheets and manufacturer documentation for Microchip MCP2562FDT-H/MF.

Data Sheets:

The MCP2561/2FD is a Microchip Technology Inc. second generation high-speed CAN transceiver. It offers the same features as the MCP2561/2. Additionally, it guarantees Loop Delay Symmetry in order to support the higher data rates required for CAN FD. The maximum propagation delay was improved to support longer bus length. The device meets the automotive requirements for CAN FD bit rates exceeding 5 Mbps, low quiescent current, electromagnetic compatibility (EMC) and electrostatic discharge (ESD).  The device family members are MCP2561FD with SPLIT pin and MCP2562FD with VIO pin.

For 12V applications please consider the ATA6561



  • Maximum Propagation Delay: 120 ns
  • Loop Delay Symmetry: -10%/+10% (2 Mbps)
  • Implements ISO-11898-2 and ISO-11898-5 Standard Physical Layer Requirements
  • AEC-Q100 Grade 0
  • Very Low Standby Current (5 μA, typical)
  • VIO Supply Pin to Interface Directly to CAN Controllers and Microcontrollers with 1.8V to 5.5V I/O
  • SPLIT Output Pin to Stabilize Common Mode in Biased Split Termination Schemes
  • An Unpowered Node or Brown-Out Event will Not Load the CAN Bus
  • Permanent Dominant Detection on TXD
  • Permanent Dominant Detection on Bus
  • Power-on Reset and Voltage Brown-Out Protection on VDD Pin
  • Protection Against Damage Due to Short-Circuit Conditions (Positive or Negative Battery Voltage)
  • Protection Against High-Voltage Transients in Automotive Environments
  • Automatic Thermal Shutdown Protection
  • Suitable for 12V and 24V Systems
  • Radiated emissions @ 2 Mbps with Common Mode Choke (CMC)
  • DPI @ 2 Mbps with CMC
  • High ESD Protection on CANH and CANL, meeting IEC61000-4-2 up to ±14 kV
  • Available in PDIP-8L, SOIC-8L and 3x3 DFN-8L
  • Extended (E): -40°C to +125°C
  • High (H): -40°C to +150°C
