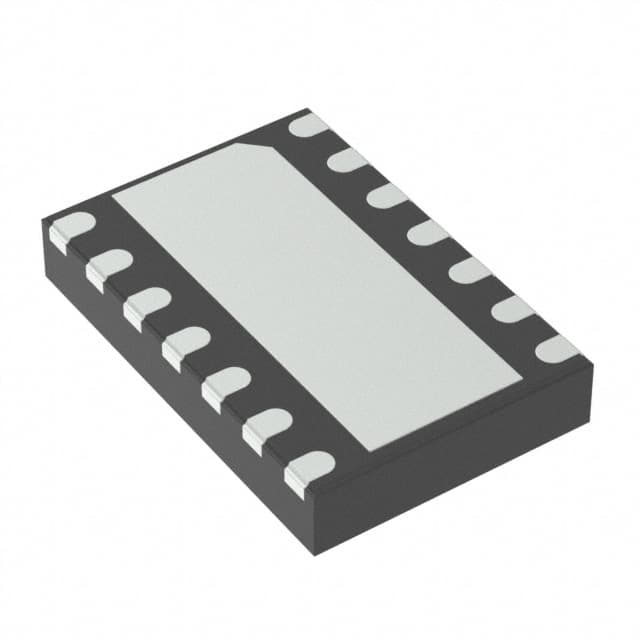

Microchip MCP2518FDT-E/QBB
Manufacturer No:
MCP2518FDT-E/QBB
Manufacturer:
Microchip
Package:
14-VDFN Exposed Pad
Description:
External CAN FD Controller with SPI Interface
Quantity:
In Stock :7933
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 16 - Wed, Jun 17, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MCP2518FDT-E/QBB Information
Microchip MCP2518FDT-E/QBB technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2518FDT-E/QBB.
- Type
- Parameter
- Bitrate Max [MBits/s]
- 8
- CAN Controllers
- 1
- Functional Safety Standards
- ISO 26262 – Up to ASIL B
- Internal CAN Clock
- No
- LPM Current Max [uA]
- 10
- Message RAM [KB]
- 2
- Operating Voltage [V] Max
- 5.5
- Operating Voltage [V] Min
- 2.7
- RX FIFOs
- 31
- Rx Buffers
- 0
- Type
- Parameter
- SPI Interface
- Yes
- Serial Bus Speed [MHz]
- 17
- Standby Current Max [μA]
- 0
- TX Event FIFO
- 1
- TX FIFOs
- 31
- TX Queue
- 1
- TempRange [°C] Max
- 150
- TempRange [°C] Min
- -40
- Time Stamp [Bits]
- 32
- TX Buffers
- 0
Download datasheets and manufacturer documentation for Microchip MCP2518FDT-E/QBB.
Application Notes:
Reference Manual:
Data Sheets:
The MCP2518FD is a cost-effective and small-footprint External CAN FD Controller that can be easily added to a microcontroller with an available SPI interface. Therefore, a CAN FD channel can be easily added to a microcontroller that is either lacking a CAN FD peripheral or that doesn't have enough CAN FD channels.
The MCP2518FD supports both CAN frames in the Classical format (CAN 2.0B) and CAN Flexible Data Rate (CAN FD) format as specified in ISO11898-1:2015.
Please see our MikroElektronika click Board! https://shop.mikroe.com/mcp2518fd-click
Please see our functional safety feature page CAN/CAN FD
An MCAL driver is available upon request as described here: https://www.microchip.com/en-us/solutions/automotive-and-transportation/software
Please contact your local Sales representative.
The MCP2518FD is supported in the mainline linux kernel since Kernel version 5.10 and can be found here
Backports and an external kernel module can be found here
- Conforms to ISO 11898-1:2015
- Supports both CAN 2.0B and CAN FD
- Arbitration Bit Rate up to 1 Mbps
- Data Bit Rate up to 8 Mbps
- Up to 17 MHz SPI Clock Speed
- Flexible FIFO setup
- 31 FIFOs configurable as transmit or receive
- 32 Flexible Filter and Mask Objects
- One Transmit Queue
- Misc
- 32-bit Time Stamp
- Bus Health Diagnostics and Error Counters
- Temperature Range: -40°C to +150°C
- Packages: VDFN14 (Wettable Flanks), SOIC14
- Low power consumption
- Low power mode current: 10uA, Max
- VDD: 2.7V-5.5V
- Active Current Max: 12mA @ 5.5V, 40 MHz CAN Clock
- Built-In Safety features
- Loopback mode
- SPI commands with CRC to detect noise on SPI interface
- ECC for the SRAM 1 bit correction, 2 bit detection
