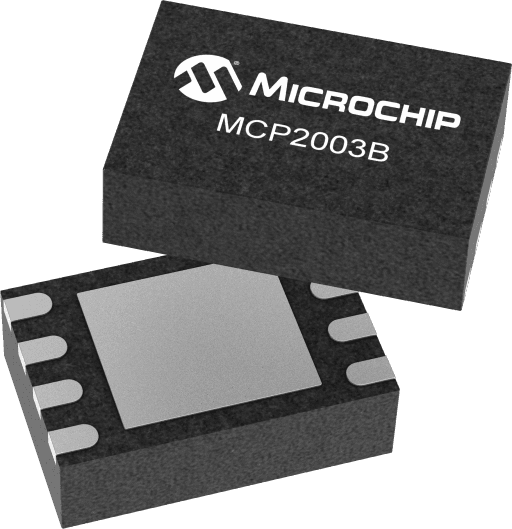

Microchip MCP2003B-E/SN

Manufacturer No:

MCP2003B-E/SN

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

LIN Transceiver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP2003B-E/SN information

Microchip MCP2003B-E/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP2003B-E/SN.

Type
Parameter

Baud Rate Max [kbit/s]
20

TempRange [°C] Max
150

Vin Max (V)
30

Vin Min (V)
6

Wake Pin
Yes

Watchdog
No

Wettable Flanks
No

Integrated VREG
No

Download datasheets and manufacturer documentation for Microchip MCP2003B-E/SN.

Data Sheets:

bb8d3ca9556e47a777fb8653fb49e83e.pdf

Supporting Collateral:

1e2cd981d96c094ea4da55d77c5f3a23.pdf

Stand-alone LIN Transceiver -- MCP2003B supports a wide range of packages; 8-pin 2x3 DFN, 3x3 DFN and SOIC

This device provides a bidirectional, half-duplex communication, physical interface to automotive and industrial LIN systems to meet the LIN Bus Specification Revision 2.2, SAE J2602, and ISO 17987. The device is both short-circuit and overtemperature protected by internal circuitry. The device has been specifically designed to operate in the automotive operating environment and will survive all specified transient conditions while meeting all of the stringent quiescent current requirements.

Please see our MikroElektronika click board! http://www.mikroe.com/click/mcp2003b

The MCP2003B is Compliant with Local Interconnect Network (LIN) Bus Specifications 1.3, 2.0, 2.1, 2.2, SAE J2602, and ISO17987
Supports Baud Rates up to 20 Kbaud with LIN-Compatible Output Driver
60V Load Dump Protected
Very High Electromagnetic Immunity (EMI) Meets Stringent Original Equipment Manufacturers (OEM) Requirements
±35V on LBUS (SAE J2962-1)
±85V on LBUS (SAE J2962-1)
>25kV on LBUS (SAE J2962-1)
>15kV on VBB (IEC 61000-4-2)
>6 kV on LBUS (IEC 61000-4-2)
Very High Immunity to RF Disturbances Meets Stringent OEM Requirements
Wide Supply Voltage: 5.5V – 30.0V Continuous
Extended (E) Temperature Range: -40°C to +125°C
High (H) Temperature Range: -40°C to +150°C
Interfaces to PIC® MCU EUSART and Standard USARTs
Internal pull-up resistor and diode
Protected against battery shorts
Protected against loss of ground
High current drive: >40 mA
Automatic Thermal Shutdown
Low-Power Mode (~ 5 μA)
