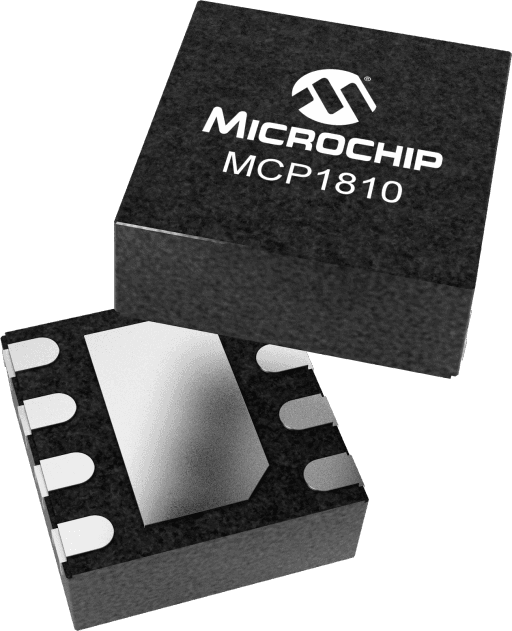

Microchip MCP1810T-30I/J8A

Manufacturer No:

MCP1810T-30I/J8A

Manufacturer:

Microchip

Package:

8-VFDFN Exposed Pad

Description:

20nA Quiescent Current LDO

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCP1810T-30I/J8A information

Microchip MCP1810T-30I/J8A technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1810T-30I/J8A.

Type
Parameter

Download datasheets and manufacturer documentation for Microchip MCP1810T-30I/J8A.

User Guide:

236512db6aad7bb5cfe5dfd648c8e430.pdf

Data Sheets:

07a8cb31d1a16eed186414a6452591b8.pdf

The MCP1810 is a 150 mA (for VR ≤ 3.5V), 100 mA (for VR > 3.5V) low dropout (LDO) linear regulator that provides high-current and low-output voltages, while maintaining an ultra-low 20 nA of quiescent current during device operation. In addition, the MCP1810 can be shut down for an even lower 1 nA (typical) supply current draw. The MCP1810 comes in six standard fixed output-voltage versions: 1.2V, 1.8V, 2.5V, 3.0V, 3.3V and 4.2V. The 150 mA output current capability, combined with the low output-voltage capability, make the MCP1810 a good choice for new ultra-long-life LDO applications that have high-current demands, but require ultra-low power consumption during sleep states. The MCP1810 is stable with ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1 µF (2.2 µF recommended) of output capacitance is needed to stabilize the LDO. The MCP1810 ultra-low quiescent and shutdown current allows it to be paired with other ultra-low current draw devices, such as Microchip’s nanoWatt eXtreme Low Power (XLP) technology devices, for a complete ultra-low power solution.

Ultra-Low Quiescent Current: 20 nA (typical)
Ultra-Low Shutdown Supply Current:1 nA (typical)
150 mA Output Current Capability for VR = 3.5V
100 mA Output Current Capability for VR > 3.5V
Input Operating Voltage Range: 2.5V to 5.5V
Standard Output Voltages (VR): 1.2V, 1.8V, 2.5V,3.0V, 3.3V, 4.2V
Low Dropout Voltage: 380 mV maximum at 150 mA
Stable with 1.0 µF Ceramic Output Capacitor
Overcurrent Protection
Available in Space Saving Packages: 2 x 2 mm VDFN, SOT-23-3 and SOT-23-5
