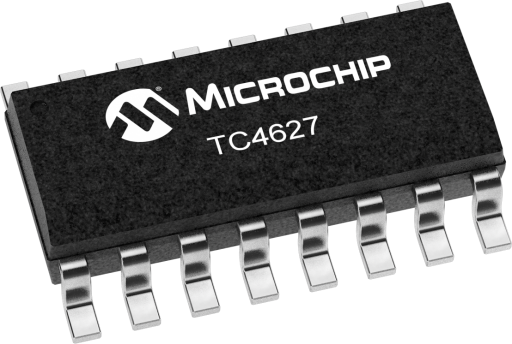

Microchip TC4627COE
Microchip TC4627COEMicrochip TC4627COE

Microchip TC4627COE

Manufacturer No:

TC4627COE

Manufacturer:

Microchip

Package:

16-SOIC (0.295, 7.50mm Width)

Description:

1.5 A MOSFET Gate Driver with Voltage Tripler

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TC4627COE information

Microchip TC4627COE technical specifications, attributes, parameters and parts with similar specifications to Microchip TC4627COE.

  • Type
  • Parameter
  • MOSFET Driver Type
  • Low Side
  • Configuration
  • Non-Inverting
  • Maximum Supply Voltage (V)
  • 6
  • Peak Source Output (A)
  • 1.5
  • Peak Sink Output (A)
  • 1.5
  • Source Resistance (Ω)
  • 10
  • Sink Resistance (Ω)
  • 8
  • Propagation Delay t<sub>D1</sub> (ns)
  • 35
  • Propagation Delay t<sub>D2</sub> (ns)
  • 45
  • Rise Time (t<sub>R</sub>, ns)
  • 33
  • Fall Time (t<sub>F</sub>, ns)
  • 27
  • Capacitive Load Drive
  • 1,000 pF in 40 ns

Download datasheets and manufacturer documentation for Microchip TC4627COE.

Data Sheets:

Application Notes:

User Guide:

Brochures:

The TC4626/4627 are single CMOS high speed gate drivers with an on-board voltage boost circuit. These parts work with an input supply voltage from 4 to 6 V. The internal voltage booster will produce a VBOOST potential up to 12 V above VIN. This VBOOST is not regulated, so its voltage is dependent on the input VDD voltage and output drive loading requirements. An internal under voltage lockout (UVLO) circuit keeps the output in a low state when VBOOST drops below 7.8 V. Output is enabled when VBOOST is above 11.3 V.



  • Power driver with on Board Voltage Booster
  • Low IDD: < 4 mA
  • Small Package: 8-Pin PDIP
  • Under-Voltage Circuitry
  • Fast Rise-Fall Time: < 40 ns @ 1,000 pF
  • Below-Rail Input Protection, under voltage lockout (UVLO)
