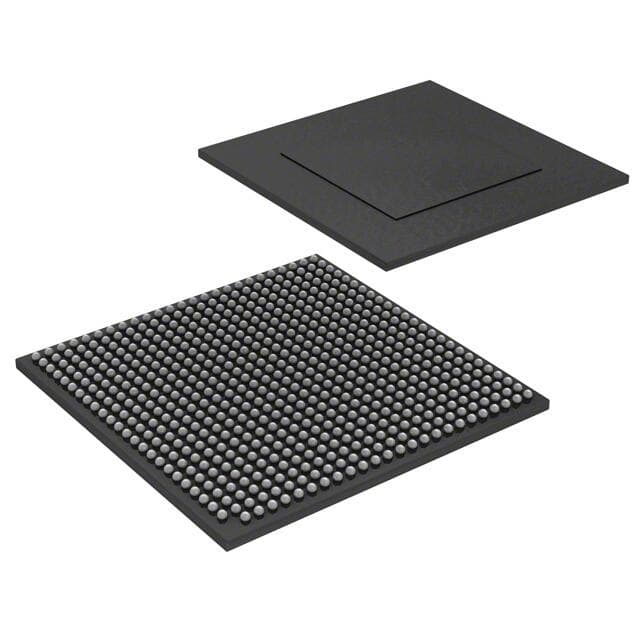

NXP MCIMX6Q7CVT08AE

Manufacturer No:

MCIMX6Q7CVT08AE

Manufacturer:

NXP

Package:

624-FBGA, FCBGA

Description:

0.8mm ARM® Cortex®-A9 Microprocessor i.MX6Q Series 624-FBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX6Q7CVT08AE information

NXP MCIMX6Q7CVT08AE technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX6Q7CVT08AE.

Type
Parameter

Factory Lead Time
15 Weeks

Package / Case
624-FBGA, FCBGA

Surface Mount
YES

Operating Temperature
-40°C~105°C TA

Packaging
Tray

Series
i.MX6Q

Published
2002

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
624

HTS Code
8542.39.00.01

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
40

JESD-30 Code
S-PBGA-B624

Supply Voltage-Max (Vsup)
1.5V

Supply Voltage-Min (Vsup)
1.275V

Number of I/O
14

Speed
800MHz

Core Processor
ARM® Cortex®-A9

Address Bus Width
16

External Data Bus Width
64

RAM (words)
272K

Voltage - I/O
1.8V 2.5V 2.8V 3.3V

Ethernet
10/100/1000Mbps (1)

Number of Cores/Bus Width
4 Core 32-Bit

Graphics Acceleration
Yes

RAM Controllers
LPDDR2, LVDDR3, DDR3

USB
USB 2.0 + PHY (4)

Additional Interfaces
CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART

Co-Processors/DSP
Multimedia; NEON? SIMD

Bus Compatibility
CAN; ETHERNET; I2C; I2S; IRDA; PCI; RS-232; RS-485; SPI; UART; USB

Security Features
ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection

Display & Interface Controllers
Keypad, LCD

SATA
SATA 3Gbps (1)

Length
21mm

Height Seated (Max)
2.16mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MCIMX6Q7CVT08AE.

MCIMX6Q7CVT08AE Overview

The microprocessor is conveniently packaged in 624-FBGA, FCBGA, making it easy to ship internationally. High reliability is provided by the advanced packaging method Tray. There are 4 Core 32-Bit cores/bus width on the CPU. Understand the operating temperature around -40°C~105°C TA. The i.MX6Q series contains it. A ARM® Cortex®-A9 processor powers this CPU. LPDDR2, LVDDR3, DDR3 RAM controllers are used by this CPU. This microprocessor has CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART interfaces to serve you better. I/O is run at 1.8V 2.5V 2.8V 3.3V on this CPU. Total terminations are 624. The maximum supply current is 1.5V. The external data bus width of this CPU is 64. 14 I/Os are used by CPU programs to transfer data.

MCIMX6Q7CVT08AE Features

ARM® Cortex®-A9 Core
14 I/Os

MCIMX6Q7CVT08AE Applications

There are a lot of NXP USA Inc.
MCIMX6Q7CVT08AE Microprocessor applications.

Automatic control
Equipment control
Instrument control
Consumer electronics products
Toys
Robots
Radio
Television
Heater/Fan
Calculator
