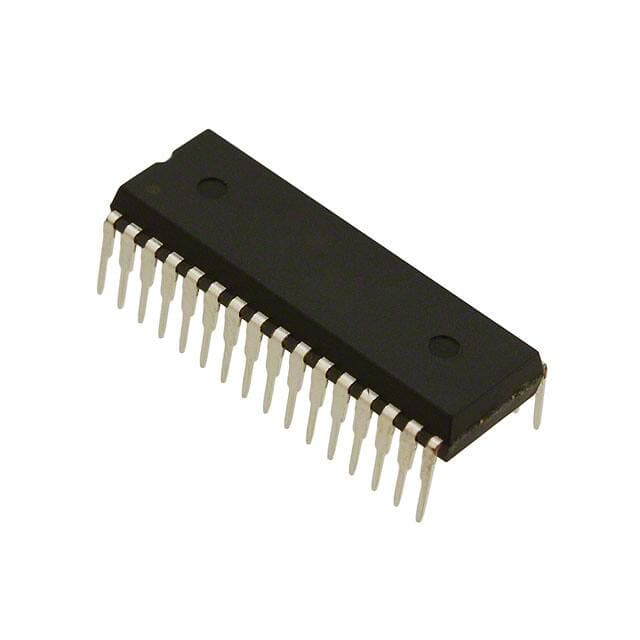

NXP MC9S08FL16CBM

Manufacturer No:

MC9S08FL16CBM

Manufacturer:

NXP

Package:

32-SDIP (0.400, 10.16mm)

Description:

16KB 16K x 8 FLASH 8-Bit Microcontroller S08 Series MC9S08FL16 5V 32-SDIP (0.400, 10.16mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC9S08FL16CBM information

NXP MC9S08FL16CBM technical specifications, attributes, parameters and parts with similar specifications to NXP MC9S08FL16CBM.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Through Hole

Package / Case
32-SDIP (0.400, 10.16mm)

Surface Mount
NO

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
S08

Published
2006

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
32

ECCN Code
3A991.A.2

Terminal Finish
MATTE TIN

HTS Code
8542.31.00.01

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
1.778mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
MC9S08FL16

JESD-30 Code
R-PDIP-T32

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Oscillator Type
Internal

Number of I/O
30

Speed
20MHz

RAM Size
1K x 8

Voltage - Supply (Vcc/Vdd)
4.5V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Peripherals
LVD, PWM, WDT

Clock Frequency
20MHz

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
16KB 16K x 8

Connectivity
SCI

Bit Size
8

Data Converter
A/D 12x8b

Has ADC
YES

DMA Channels
NO

PWM Channels
YES

DAC Channels
NO

ROM (words)
16384

Length
28.1mm

Download datasheets and manufacturer documentation for NXP MC9S08FL16CBM.

MC9S08FL16CBM Overview

Packaged in a 32-SDIP (0.400, 10.16mm) format. A total of 30 I/Os are on the Microcontroller. Through Hole is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 8-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~85°C TA. A S08 series electrical component is used in this application. This program has a program memory of 16KB 16K x 8 bytes, which is the size of the program. ICs for MICROCONTROLLER uPs/uCs/peripheral parts. There are 32 terminations on the IC chip, which means there are 32 terminations on the integrated circuit chip. In addition, MCU chip comes with a 8-bit size. Microcontroller chip has outputs of 5V volts. The system has NO channels for DMA communication. Alternatives can be found by searching through the base part number MC9S08FL16 to find them. This MCU Chip uses YES PWM channels to operate. It runs on a 20MHz clock.

MC9S08FL16CBM Features

32-SDIP (0.400, 10.16mm) package
Mounting type of Through Hole
Microcontrollers subcategory

MC9S08FL16CBM Applications

There are a lot of NXP USA Inc.
MC9S08FL16CBM Microcontroller applications.

Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
