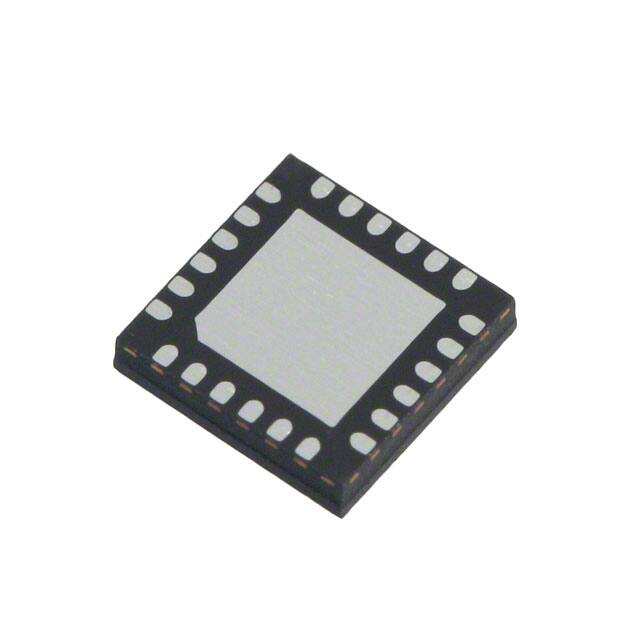

NXP MC15XS3400CHFK

Manufacturer No:

MC15XS3400CHFK

Manufacturer:

NXP

Package:

24-PowerQFN

Description:

3.3/5V N-Channel PMIC MC15XS3400 12V 24-PowerQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC15XS3400CHFK information

NXP MC15XS3400CHFK technical specifications, attributes, parameters and parts with similar specifications to NXP MC15XS3400CHFK.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
24-PowerQFN

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tray

Published
2008

Feature
Internal PWM, Slew Rate Controlled, Watchdog Timer

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Subcategory
Peripheral Drivers

Terminal Position
BOTTOM

Terminal Form
BUTT

Peak Reflow Temperature (Cel)
245

Number of Functions
4

Supply Voltage
12V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
MC15XS3400

Number of Outputs
4

Qualification Status
Not Qualified

Output Type
N-Channel

Supply Voltage-Max (Vsup)
20V

Supply Voltage-Min (Vsup)
6V

Interface
SPI

Current - Output (Max)
6A

Output Configuration
High Side

Voltage - Supply (Vcc/Vdd)
3V~5.5V

Switch Type
General Purpose

Ratio - Input:Output
1:1

Voltage - Load
6V~20V

Driver Number of Bits
4

Fault Protection
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Turn On Time
90 µs

Rds On (Typ)
15m ?

Turn Off Time
90 µs

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SINK

Length
12mm

Height Seated (Max)
2.2mm

Width
12mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MC15XS3400CHFK.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

MC15XS3400CHFK Overview

Tray is the way it's packaged.Package 24-PowerQFN contains it.The lighting driver has the mounting type Surface Mount.It owns the General Purpose switch type.Keeping the temperature at -40°C~150°C TJ ensures reliable operation.The LED driver has 4 outputs.Operation is based on 3V~5.5V supply voltage.Voltage output is N-Channel volts at maximum.Features of the lighting driver are Internal PWM, Slew Rate Controlled, Watchdog Timer.The MC15XS3400 family contains this object.It has a total of 24 terminations.It has 4 functions.The LED driver output is limited to 6AV.Supply voltages of 12V allow for high efficiency.Self-contained LED driver with Peripheral Drivers capacity in an econtainer.The Vsup value (maximum supply voltage) is set to 20V.Normal operation requires a voltage above 6V for the supply voltage.This part's power supply is 3.3/5V.

MC15XS3400CHFK Features

Supplied from 12V

MC15XS3400CHFK Applications

There are a lot of NXP USA Inc.
MC15XS3400CHFK Power Switches ICs applications.

USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
