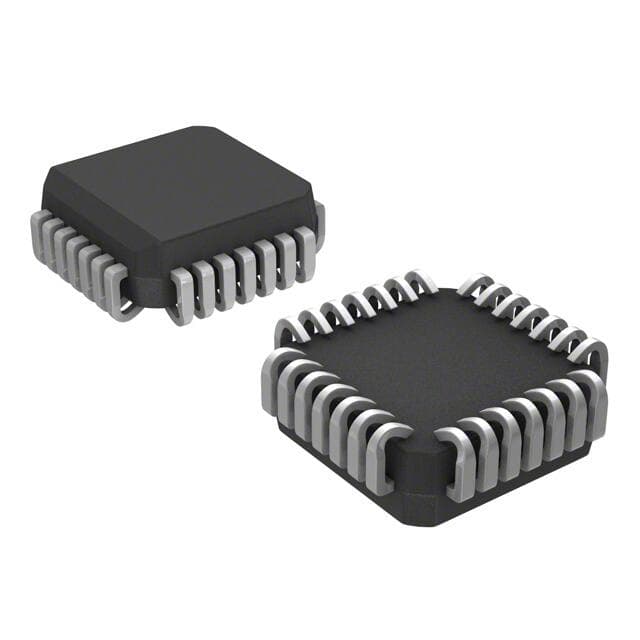

ONSEMI MC10E143FNR2G

Manufacturer No:

MC10E143FNR2G

Manufacturer:

ONSEMI

Package:

28-LCC (J-Lead)

Description:

9 Bit Shift Register 0°C~85°C Shift Register 10E Series 10E143 28 Pin 5V 28-LCC (J-Lead)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MC10E143FNR2G information

ONSEMI MC10E143FNR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI MC10E143FNR2G.

Type
Parameter

Lifecycle Status
LIFETIME (Last Updated: 1 month ago)

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-LCC (J-Lead)

Number of Pins
28

Weight
1.182714g

Operating Temperature
0°C~85°C

Packaging
Tape & Reel (TR)

Series
10E

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

Terminal Finish
Tin (Sn)

Additional Feature
NECL MODE: VCC = 0V WITH VEE = -4.2V TO -5.7V

Technology
ECL

Voltage - Supply
4.2V~5.7V

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
10E143

Function
Universal

Number of Outputs
9

Qualification Status
Not Qualified

Output Type
Push-Pull

Number of Elements
1

Polarity
Non-Inverting

Supply Voltage-Max (Vsup)
5.7V

Supply Voltage-Min (Vsup)
4.2V

Number of Channels
9

Number of Bits
9

Propagation Delay
1 ns

Turn On Delay Time
1 ns

Family
10E

Logic Function
Shift Register

Output Characteristics
OPEN-EMITTER

Halogen Free
Halogen Free

Logic Type
Shift Register

fmax-Min
700 MHz

Clock Edge Trigger Type
Positive Edge

Height Seated (Max)
4.57mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI MC10E143FNR2G.

PCN Assembly/Origin:

onsemiconductor-mc100e175fng-pcnassemblyorigin-0649.pdf

MC10E143FNR2G Overview

This device can be found embedded within the package 28-LCC (J-Lead). A total of 28 terminations can be found on the chip. Tape & Reel (TR) is the case in which it is packed. This part has an operating supply voltage of 5V. A total of 1 elements are present on this part. 28 pins are present on the device. It is recommended to mount by Surface Mount in order to get the best results. In this case, the electronic component belongs to the 10E. There is a component mounted in the way of Surface Mount on this board. It is important to note that the operating temperature range is 0°C~85°C. There is a voltage supply within 4.2V~5.7V. It is part of the 10E series of electrical components. With 10E143 family search, you can find similar parts. Additionally, please note the following: NECL MODE: VCC = 0V WITH VEE = -4.2V TO -5.7V. There must be a minimum supply voltage (Vsup) of 4.2V for this part. This part requires a maximum supply voltage (Vsup) of 5.7V. A total of 9 bits are present on an IC chip. 900MHz is the frequency of the device. 9 outputs are available on the part.

MC10E143FNR2G Features

With 28 pins
Mounted in Surface Mount type.
Based on 10E143 family

MC10E143FNR2G Applications

There are a lot of ON Semiconductor
MC10E143FNR2G Shift Registers applications.

Data Format Converters
Data Processors
Pseudo Random Pattern Generator
Pulse Extenders
Pattern Recognizers
Interconnectors
Counter
Data manipulation
Delay Line
Generate time delay toward digital circuits
