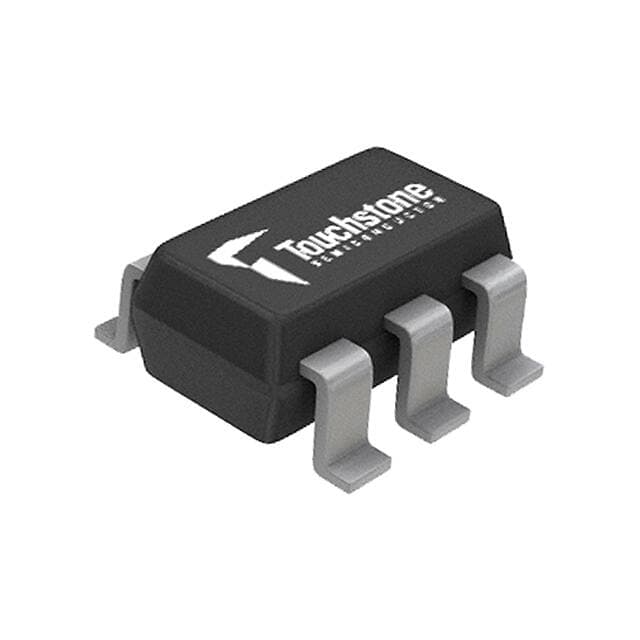

Touchstone Semiconductor TS1103-50EG6T

Manufacturer No:

TS1103-50EG6T

Manufacturer:

Touchstone Semiconductor

Package:

SOT-23-6

Description:

1 Channels 120 dB Instrumentational OP Amps 2V~25V SOT-23-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS1103-50EG6T information

Touchstone Semiconductor TS1103-50EG6T technical specifications, attributes, parameters and parts with similar specifications to Touchstone Semiconductor TS1103-50EG6T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-6

Number of Pins
6

Supplier Device Package
SOT-23-6

Operating Temperature
-40°C~105°C

Packaging
Cut Tape (CT)

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Number of Elements
1

Number of Channels
1

Number of Circuits
1

Max Supply Voltage
25V

Min Supply Voltage
2V

Operating Supply Current
680nA

Power Dissipation
360mW

Max Supply Current
1.2?A

Current - Supply
680nA

Amplifier Type
Current Sense

Common Mode Rejection Ratio
120 dB

Voltage - Supply, Single/Dual (±)
2V~25V

Voltage Gain
33.98dB

Voltage - Input Offset
30?V

Max Dual Supply Voltage
27V

-3db Bandwidth
6kHz

Height
1.45mm

Length
3mm

Width
1.75mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Touchstone Semiconductor TS1103-50EG6T.

Datasheets:

siliconlabs-ts110325db-datasheets-9765.pdf

TS1103-50EG6T Overview

Packaging for the buffer amplifier is in the form of a SOT-23-6 case. A Current Sense-type buffer amplifier is shown here. There is a Cut Tape (CT) case that is delivered with the instrumentation amplifiers. An 6-pin op amp ic is included in the package. With regards to the offset voltage of the input, buffer amplifier is rated at 30?V. For this electrical component, the recommended mounting type is Surface Mount, which is the most common. The buffer amplifier functions well at -40°C~105°C as far as operating temperature is concerned. Using a supply current of 680nA , this buffer op amp will be able to operate. Keeping the voltage gain at 33.98dB is the best course of action. The buffer amp consists of 1 circuits in total. 1 channels are available on the instrumentation amplifier. This op amp needs to be operated at a temperature of not less than -40°C degrees Celsius in order to function properly. You should not use op amp above 105°C degrees. A total of 1 elements are present in this linear amplifier. A supply of 680nA or higher is recommended for use with this electronic part. Regarding the voltage of the supply, this electrical part can work from a voltage as low as 25V, and this is an excellent feature. In order to ensure that the instrumentation amplifier's supply voltage remains above 2V, it is recommended to keep it higher. This electronic part should be conducted with a dual supply voltage of 27V volts for this part.

TS1103-50EG6T Features

33.98dB voltage gain

TS1103-50EG6T Applications

There are a lot of Touchstone Semiconductor
TS1103-50EG6T Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
