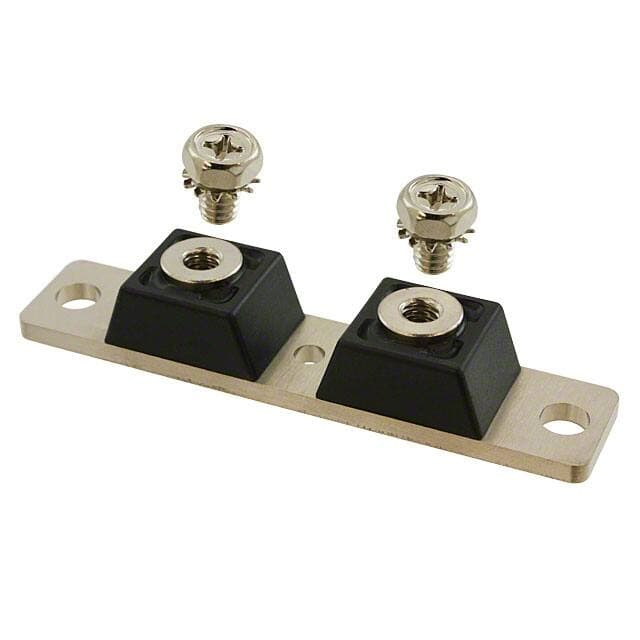

GeneSiC Semiconductor MBR60040CTR

Manufacturer No:

MBR60040CTR

Manufacturer:

GeneSiC Semiconductor

Package:

Twin Tower

Description:

Schottky Rectifier Diode 1 Pair Common Anode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 600A 40V-DC 2-Element Twin Tower Chassis Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBR60040CTR information

GeneSiC Semiconductor MBR60040CTR technical specifications, attributes, parameters and parts with similar specifications to GeneSiC Semiconductor MBR60040CTR.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time
6 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
Twin Tower

Diode Element Material
SILICON

Packaging
Bulk

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

HTS Code
8541.10.00.80

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

JESD-30 Code
R-PUFM-X2

Number of Elements
2

Element Configuration
Common Anode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Schottky

Current - Reverse Leakage @ Vr
1mA @ 20V

Forward Current
600A

Max Reverse Leakage Current
1?A

Operating Temperature - Junction
-55°C~150°C

Max Surge Current
4kA

Output Current-Max
300A

Application
POWER

Current - Average Rectified (Io)
300A

Max Reverse Voltage (DC)
40V

Average Rectified Current
600A

Number of Phases
1

Peak Reverse Current
1A

Max Repetitive Reverse Voltage (Vrrm)
40V

Diode Configuration
1 Pair Common Anode

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for GeneSiC Semiconductor MBR60040CTR.

MBR60040CTR Overview

300A is its maximum output voltage.In order to prevent the surge current from exceeding 4kA, it should be monitored.There will be no operation of this device when the forward voltage is set to 600A.In devices such as this one, reverse voltage peak is set at 1A.As a reverse biased semiconductor device, its maximal reverse leakage current is 1?A.

MBR60040CTR Features

a maximum output voltage of 300A
a peak voltage of 1A
a reverse voltage peak of 1A

MBR60040CTR Applications

There are a lot of GeneSiC Semiconductor
MBR60040CTR applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
