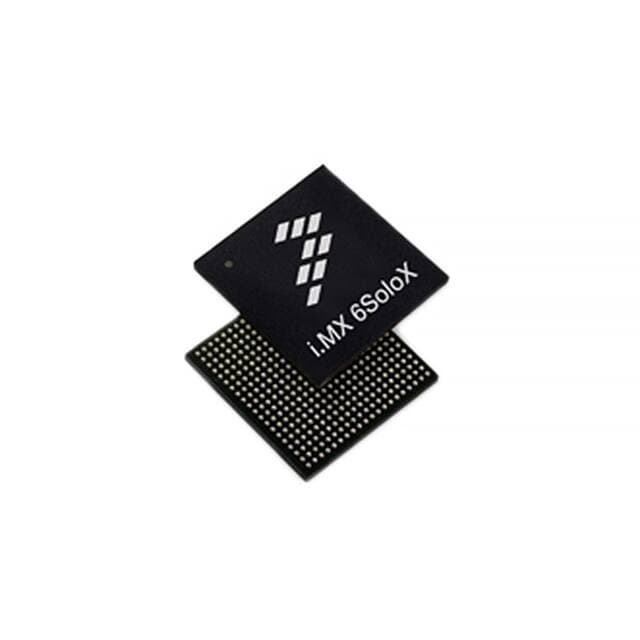

NXP MCIMX6X3EVN10AB
NXP MCIMX6X3EVN10AB

NXP MCIMX6X3EVN10AB

Manufacturer No:

MCIMX6X3EVN10AB

Manufacturer:

NXP

Package:

400-LFBGA

Description:

0.8mm ARM® Cortex®-A9, ARM® Cortex®-M4 Microprocessor i.MX6SX Series 400-LFBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MCIMX6X3EVN10AB information

NXP MCIMX6X3EVN10AB technical specifications, attributes, parameters and parts with similar specifications to NXP MCIMX6X3EVN10AB.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Package / Case
  • 400-LFBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • -20°C~105°C TJ
  • Packaging
  • Tray
  • Series
  • i.MX6SX
  • Published
  • 2002
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 400
  • ECCN Code
  • 5A992
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Terminal Pitch
  • 0.8mm
  • JESD-30 Code
  • S-PBGA-B400
  • Supply Voltage-Max (Vsup)
  • 1.5V
  • Supply Voltage-Min (Vsup)
  • 1.35V
  • Number of I/O
  • 179
  • Speed
  • 227MHz, 1GHz
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR, RISC
  • Clock Frequency
  • 1000MHz
  • Supply Current-Max
  • 1260mA
  • Address Bus Width
  • 15
  • Boundary Scan
  • YES
  • External Data Bus Width
  • 32
  • Voltage - I/O
  • 1.8V 2.5V 2.8V 3.15V
  • Ethernet
  • 10/100/1000Mbps (2)
  • Number of Cores/Bus Width
  • 2 Core 32-Bit
  • Graphics Acceleration
  • Yes
  • RAM Controllers
  • LPDDR2, LVDDR3, DDR3
  • USB
  • USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)
  • Additional Interfaces
  • AC'97, CAN, I2C, I2S, MMC/SD/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART
  • Number of Serial I/Os
  • 6
  • Co-Processors/DSP
  • Multimedia; NEON? MPE
  • Bus Compatibility
  • CAN, ETHERNET, I2C, I2S, PCI, SPI, UART, USB
  • Security Features
  • A-HAB, ARM TZ, CAAM, CSU, SNVS, System JTAG, TVDECODE
  • Display & Interface Controllers
  • Keypad, LCD
  • Length
  • 17mm
  • Height Seated (Max)
  • 1.53mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP MCIMX6X3EVN10AB.

Datasheets:

Environmental Information:

PCN Packaging:

MCIMX6X3EVN10AB Overview


The microprocessor is conveniently packaged in 400-LFBGA, making it easy to ship internationally. High reliability is provided by the advanced packaging method Tray. There are 2 Core 32-Bit cores/bus width on the CPU. Understand the operating temperature around -20°C~105°C TJ. The i.MX6SX series contains it. A ARM® Cortex®-A9, ARM® Cortex®-M4 processor powers this CPU. LPDDR2, LVDDR3, DDR3 RAM controllers are used by this CPU. This microprocessor has AC'97, CAN, I2C, I2S, MMC/SD/SDIO, PCIe, SAI, SPDIF, SPI, SSI, UART interfaces to serve you better. I/O is run at 1.8V 2.5V 2.8V 3.15V on this CPU. This is a MICROPROCESSOR, RISC for the uPs/uCs/Peripheral ICs type. Total terminations are 400. The maximum supply current is 1.5V. The external data bus width of this CPU is 32. 1000MHz is the clock frequency of the embedded microprocessor. The CPU can only be supplied with voltage up to 1260mA. 179 I/Os are used by CPU programs to transfer data. The 6 serial I/Os are set to communicate data between peripherals.

MCIMX6X3EVN10AB Features


ARM® Cortex®-A9, ARM® Cortex®-M4 Core
179 I/Os


MCIMX6X3EVN10AB Applications


There are a lot of NXP USA Inc.
MCIMX6X3EVN10AB Microprocessor applications.


  • Automatic control
  • Equipment control
  • Instrument control
  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
